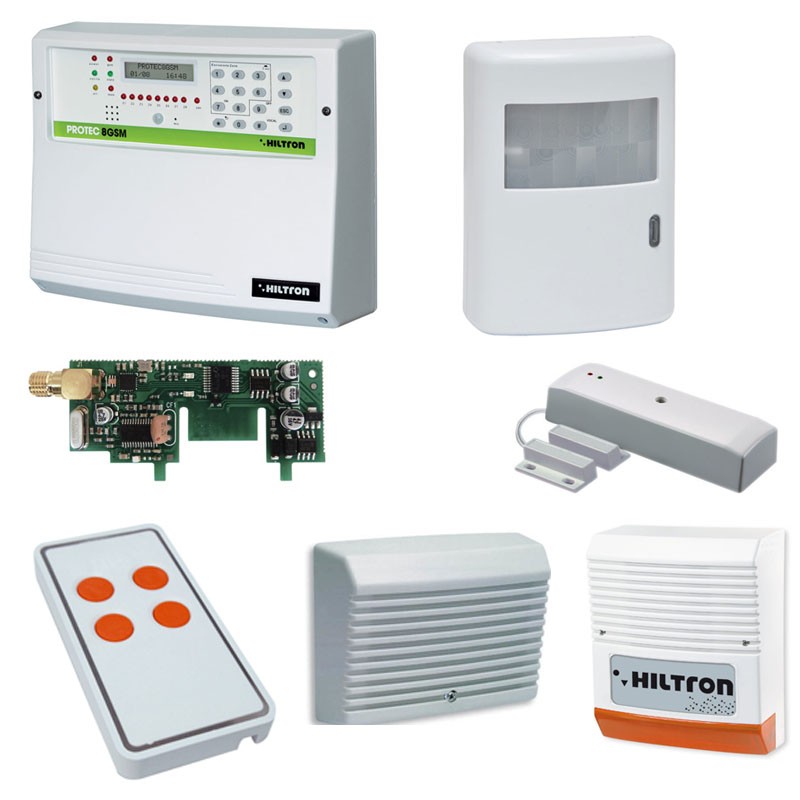

Technical specifications of KIT components:

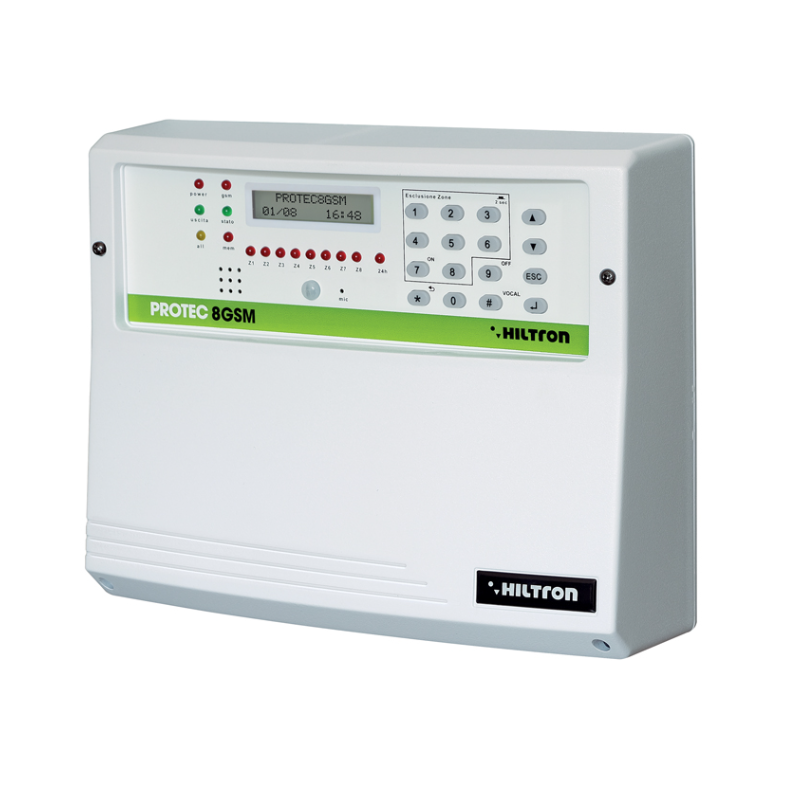

1 piece 8 zone hybrid central unit with built-in GMS+IR combiner (art. PROTEC8GSM):

Central unit specifications:

• Rated supply voltage:230V~ ±5% 50Hz
• Maximum power consumption:160mA@230Vac
• Services output: 13.5Vdc ±10%
• Outer case: ABS
• Max coverage of detector on panel: 5 meters
• Telephone book numbers: 16
• Maximum current delivered on services output: 1A
• Operating temperature: -5/+40°C
• Built-in GSM dialer: zone identification, remote self-exclusion
• GSM module: quadriband
• Control LEDs: network presence, output time, alarm status, zone status, alarm memory
• Protection zones 8
• Built-in detector type: (can be used simply for backlighting) of display and keys, or as anti-sabotage)
• Voice guidance menu: zone identification, simple remote self-exclusion
• Pre-tuned voice messages: for network presence status , anti-theft status
• Common voice message: customizable
• Control possibility: via remote console
• Self-inhibition of each zone: (if not reset) after generating an alarm
• Adjustable alarm duration: 180 - 600 seconds
• Maximum deliverable current: 2.6A (AL35SW)
• Compartment for battery backup: (recommended battery B12V7.5Ah)
• IP30 degree of protection
• Safety grade 1
• Environmental class 2
• Dimensions: W280mm x A230mmx D96mm
• Complies with the standard: CEI EN 50131-1

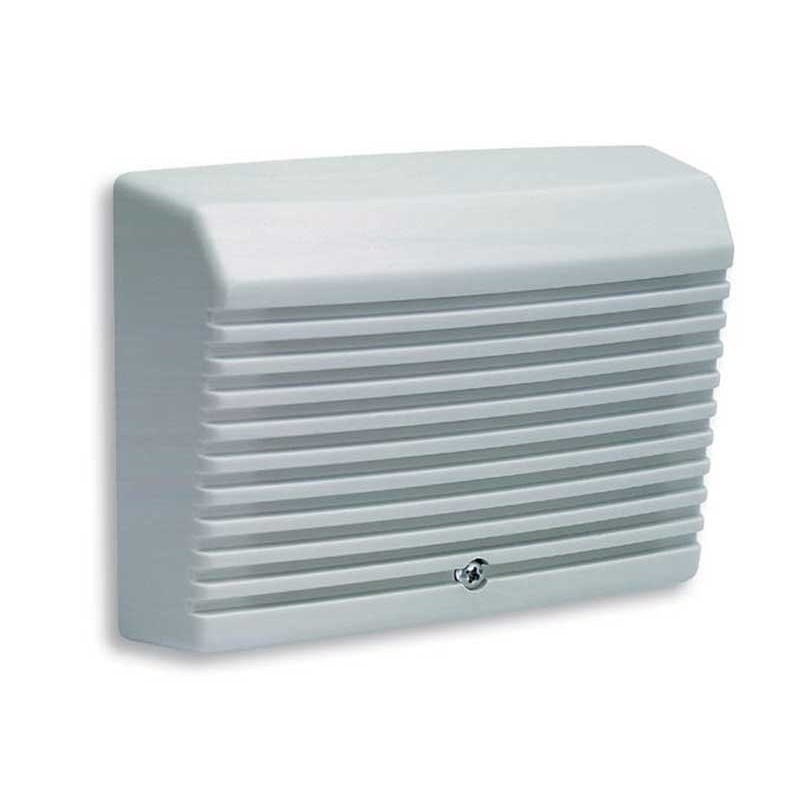

1 piece electronic piezo siren (item SP31):

Technical features of the siren electronic piezo:

• Rated supply voltage 12V
• Maximum power consumption 140 mA
• Pressure level 99dB(A) @ 3mt
• Frequency 3585 Hz
• Reverse polarity protection
• Tamper protection: anti-opening and anti-tear
• Container ABS
• Operating temperature: -5°C/ +40°C
• Dimensions: 14 × 7 × 18 cm
• Dimensions: W 135 mm x H 95mm x D 43mm
• Weight 0.260 kg

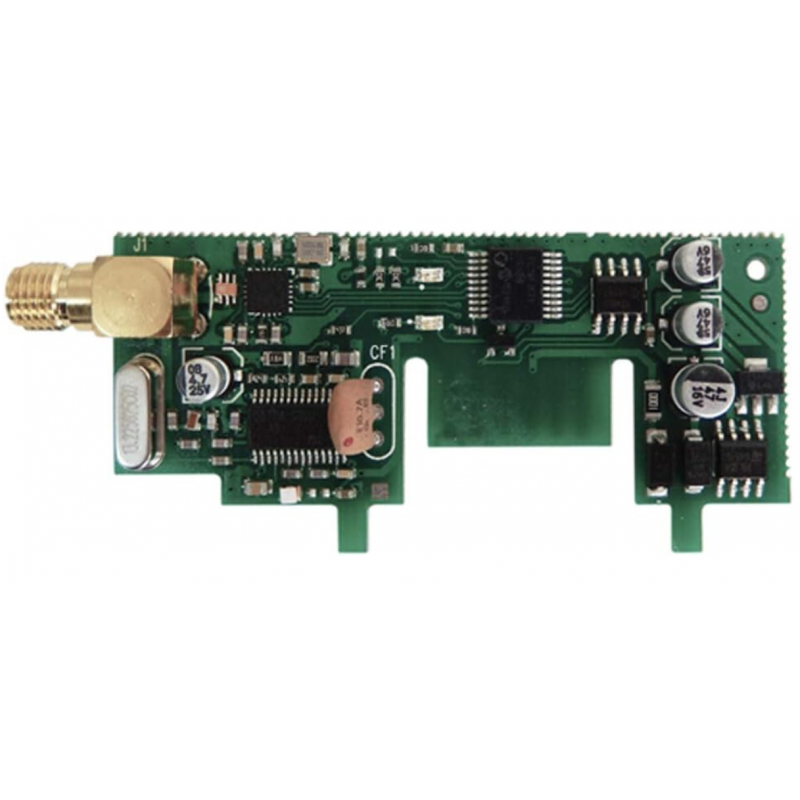

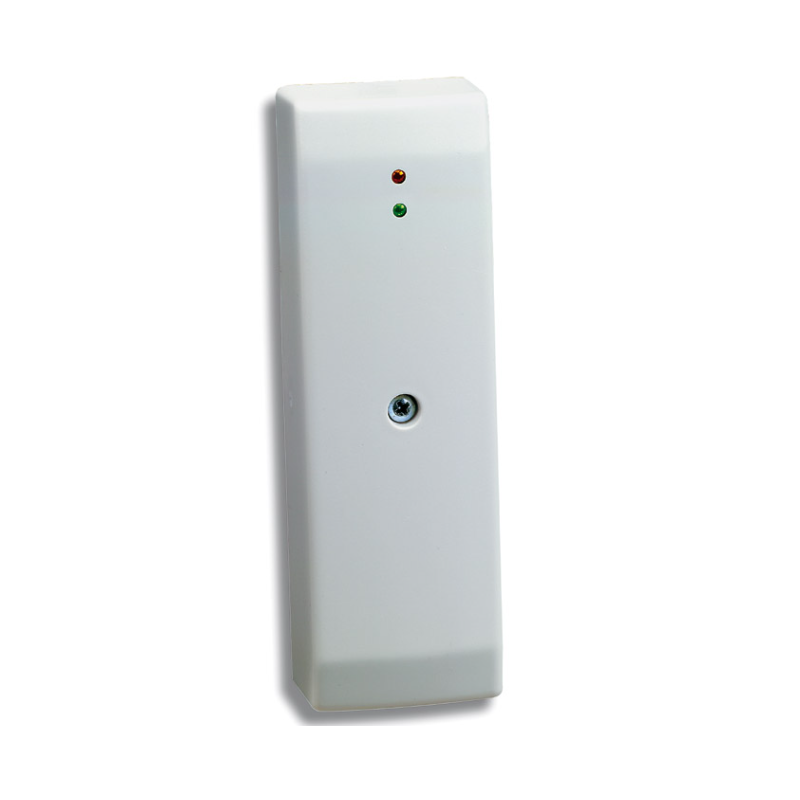

1 piece radio expansion receiver board for PROTEC8GSM and TM800GSM control panels (art.DXR2):

Board/receiver features:

• Operating protocol: XR series
• Connection: 485 bus
• Working frequency: 433.92 Mhz
• Rated supply voltage: 12V
• Power consumption: 30mA
• Container: ABS
• Dimensions (WxHxD): 35x180x80mm



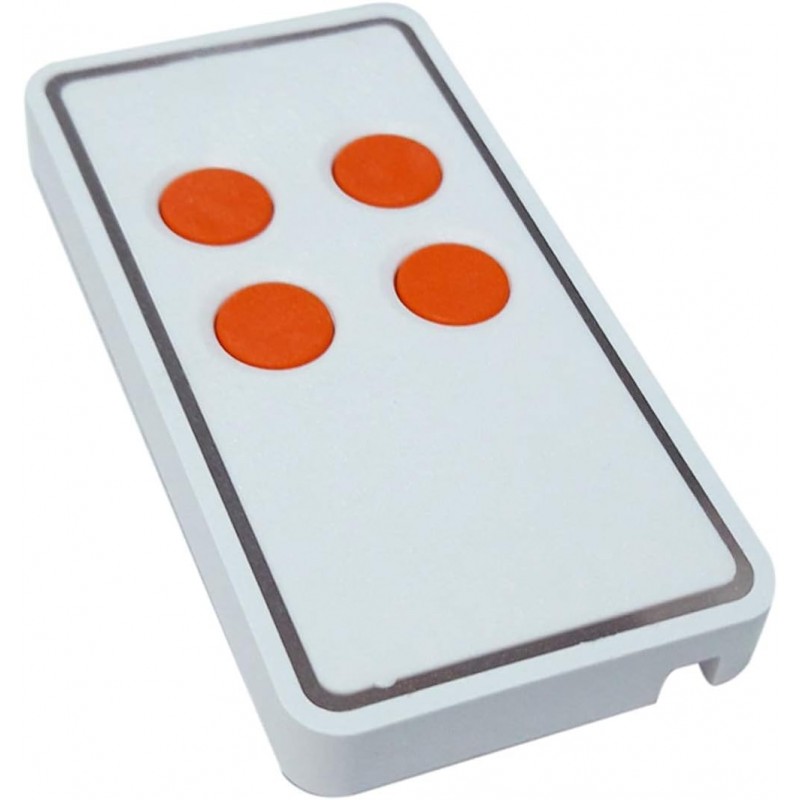

1 piece two-channel remote control for PROTEC8GSM (art.DXR4):

Remote control features:

• Two-way system
• High immunity to RF 30 Vm
• Working frequency 433.92 Mhz multi-channel (8 channels) bidirectional
• ABS housing
• Operating temperature 0°C to +50°C
• Safety grade 1
• Environmental class 2
• Dimensions: (WxHxD) 44x59x10mm
• Complies with CEI EN 50131-1 standard
• Power supply: 3Vdc lithium battery model CR2032



BATTERY REPLACEMENT: Unscrew the screw on the bottom of the remote control to open the container, remove the old battery and insert a new one respecting the polarities indicated on the container. When the battery is inserted, the remote control LED should flash: if not, disconnect the battery and wait a few seconds before inserting it again. Check the correct operation of the two keys before closing the container again.

PROGRAMMING: Press both keys for a few seconds until the LED remains lit, then release them. Program the remote control with the system code using the two keys: Left key: to enter "1" - Right key: to enter "0". If you suspend data entry for more than thirty seconds, the LED will flash for a few moments and you will automatically exit the programming phase without changing the pre-existing code. In case of an error, you can interrupt data entry by pressing the two keys simultaneously for a few moments: the LED flashes for a few seconds and you interrupt programming. When a correct code has been entered, the LED flashes once and the programming phase ends. In case of wrong code ( all zeros or all ones) the LED flashes for a few moments and exits the programming phase without accepting the code. Holding a key down for a long time sends the relevant command 15 times, then the remote control waits for the key to be released before allowing it to be sent again. This function is useful to prevent unnecessary battery consumption in case a key is inadvertently held down.

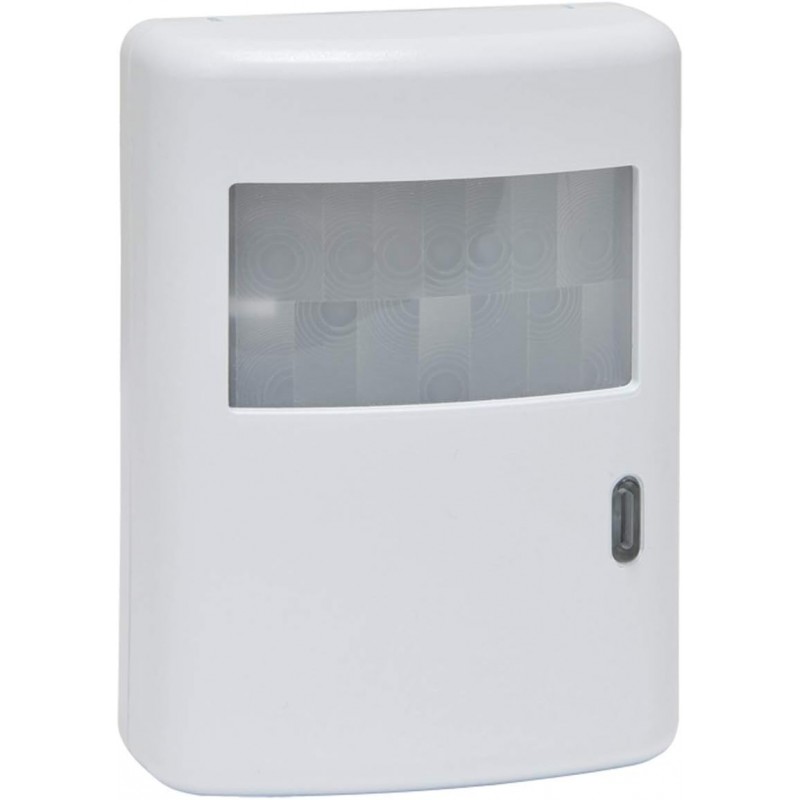

1 piece passive infrared detector via radio for XR SERIES (item XR152):

Sensor features:

• Dual-element shielded sensor with 14-beam Fresnel lens on 3 horizontal levels.
• Signaling via LEDs of radio transmission and low battery status
• High immunity to RF noise
• Complete with anti-disorientation joint
• Detection and radio transmission test
• Tamper protection
• Sensor sensitivity adjustment via trimmer
• High immunity to RF 30Vm
• Rated supply voltage 9V battery (included)
• Standby power consumption 10µA
• Alarm transmission interval 5 min
• Coverage angle H: 90°; V: 60° Low battery threshold level 7.6 volts
• Working frequency 433.92 MHz
• Infrared sensor range 12 mt
• Stabilization time at battery change 90"
• Initial stabilization time 60"
• Outer container: ABS
• Dimensions (WxHxD) 67x83x65mm



INSTALLATION: Installation should be done by fixing the XR152 detector so that it can carry out the radio transmission activity to the control panel effectively. Therefore, avoid placement in places where there are shields for the signal to the central unit, such as concrete pillars or large metal structures or in the presence of radio sources on the transmission frequency. The range increases in relation to the absence of obstacles between the detector and the central unit. Secure the detector to a wall in a stable manner, making sure there is absolutely no vibration. Avoid direct exposure to sunlight and do not orient the detector toward heat sources such as radiators or windows.

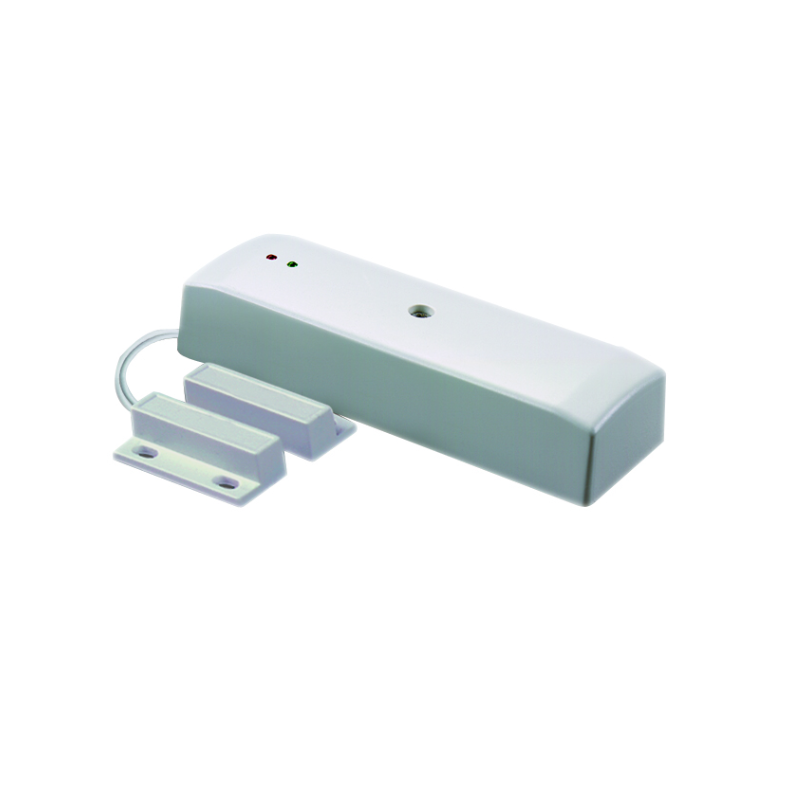

1 piece magnetic contact via radio (item XR200):

Magnetic contact features:

• NC input for connecting magnetic contacts or shutter "switch" contacts
• Low battery signaling via LED and radio transmission
• Tamper-proof tamper
• ABS housing
• Magnetic reed contact C205 included
• Transmission frequency: 433.92 MHz
• Power supply: 9V battery (included)
• Max. absorption in st/by: 9 µA
• Low battery threshold level: 7.4 volts
• Dimensions: 116x30x25 mm

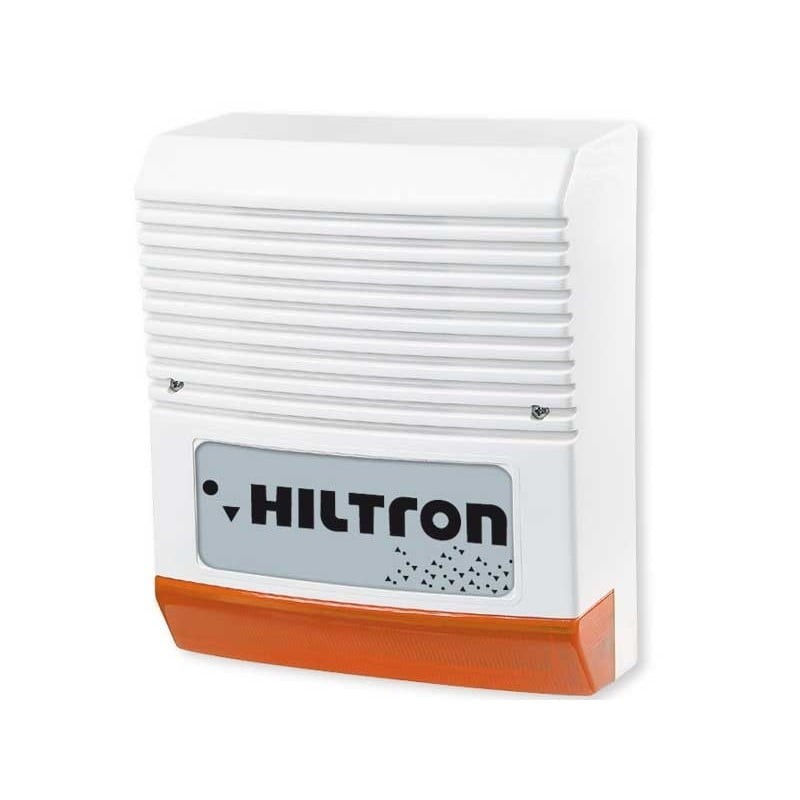

1 piece XR SERIES self-powered external siren via radio (item XR300):

External siren features:

• Hiltron self-powered electronic siren for XR series radio systems.
• Tamper protection against opening and tearing
• Test operation at battery connection with sending correct power supply signal at power on
• Light signaling of successful closure of tamper protection tamper
• Signaling of system arming and disarming by flashing of the bulb
• Signaling to the control unit of power failure, low battery and tampering
• Assignment of recognition code by programming with buttons
• Protection fuse on bulb contacts
• Alarm memory with local signaling resettable by remote control
• Radio link function for remote control excludable
• Unlimited number of sirens on single system
• Protection against short circuit and battery polarity reversal
• Rated supply voltage: 13VDC ±5%
• Transmission frequency: 433.92Mhz
• Sound pressure level: 100dB(A) @ 3mt
• Maximum consumption in standby: 30mA
• Maximum consumption in alarm: 2.1A
• Maximum alarm cycle duration: 10 minutes
• Tamper alarm duration: 3 minutes
• ABS outer container.
• Internal protection container made of electro-galvanized steel
• Base: reinforced ABS
• Hardware: stainless steel
• Dimensions: 246x205x103mm
• IP34 degree of protection
