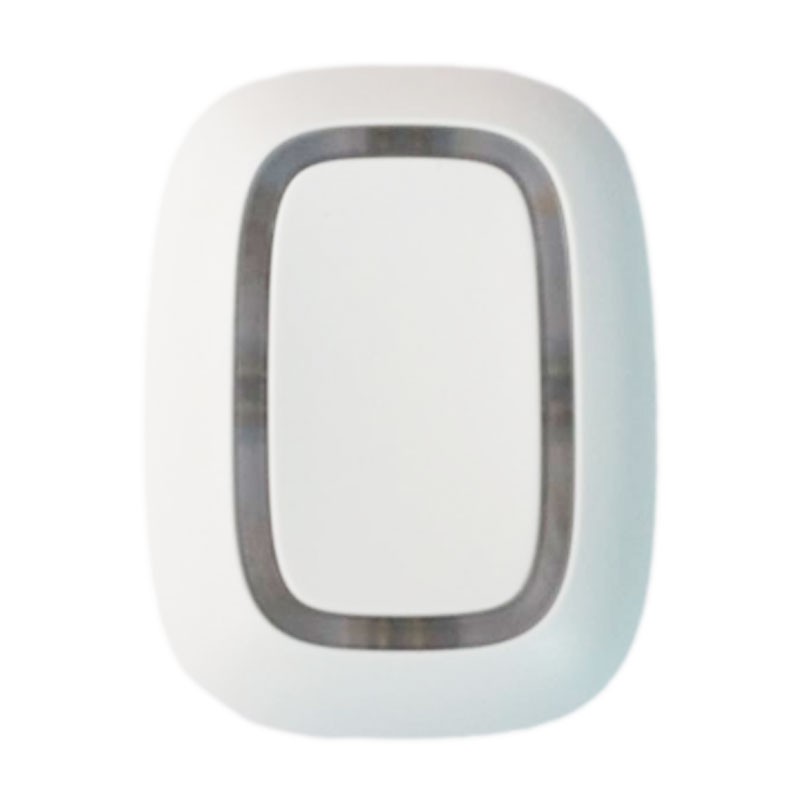

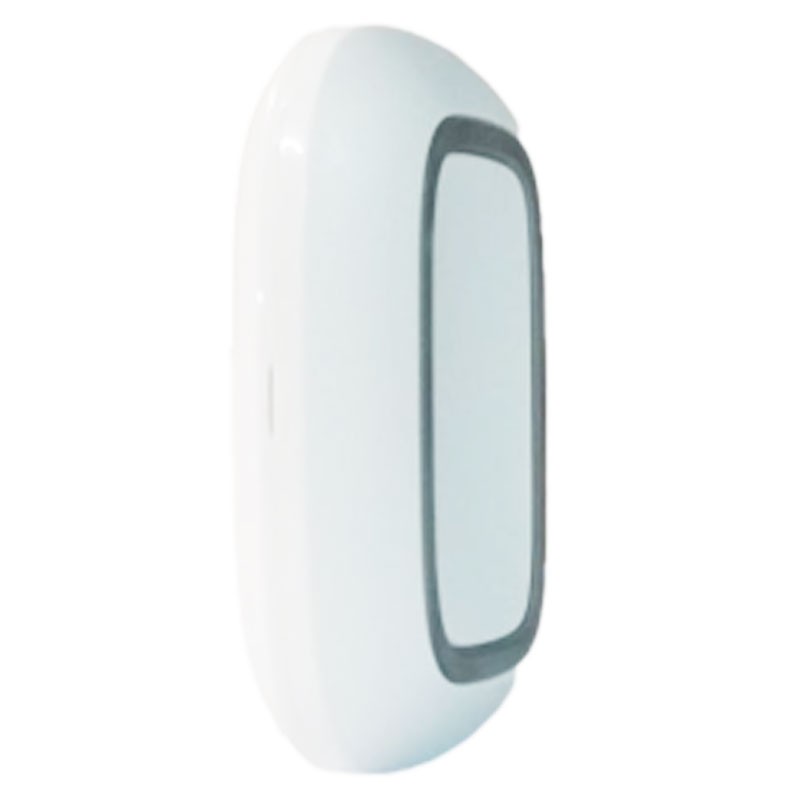

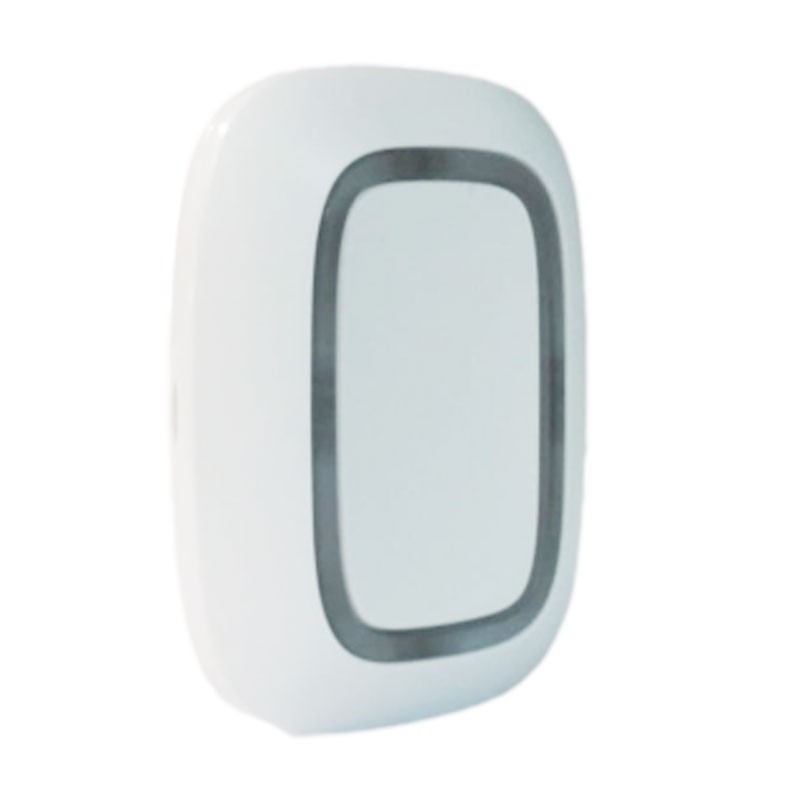

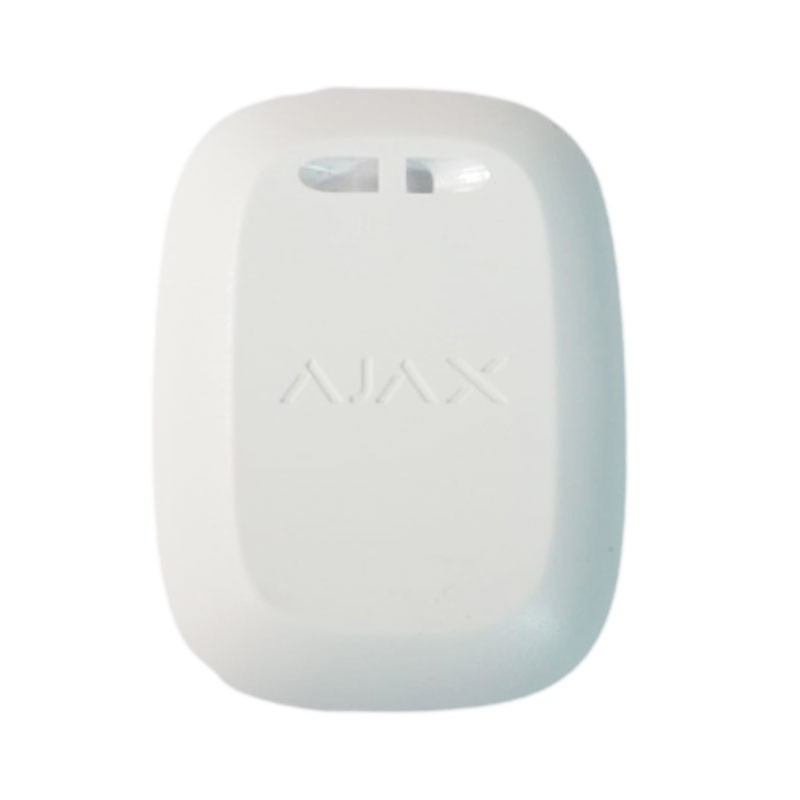

Ajax Button Jeweller Wireless panic button white
08T 38095
4823114014970
The Ajax Button Jeweller wireless intelligent panic button offers three modes of operation (Panic, Control, Silence) to ensure rapid response to emergencies and facilitate easy and effective management of automated systems.
- Panic mode for rapid alarms in emergencies
- Control mode to activate automation scenarios (e.g., lighting, locks)
- Mute mode to disable fire alarms
- Wireless function with Jeweller connectivity for high reliability
- Sleek and compact design, easy to install
- Customizable for different actions with single, double or long presses
€41.39
Items Available: 65
Frequently bought together
One button but endless possibilities with Ajax Button
Button Jeweller is a versatile device that supports three modes of operation. In Panic mode, the button instantly notifies alarm receiving stations and users of emergencies, including intrusion, fire, gas leak alarms, emergency help, and more. The detailed notifications enable quick and appropriate response to threats. In Control mode , Button Jeweller initiates automation scenarios with a single or double press. In addition, Button Jeweller silences fire alarms in Fire Alarm Silence mode.
Three modes of operation
- Panic mode
- Control mode
- Silence Fire Alarm
Button Jeweller operates in only one of the three available modes at a time. The mode can be selected and changed by a PRO user remotely in an Ajax app at any time.
Possible scenarios with Button Ajax
Simplified equipment management
Button Jeweller allows users to manage lighting or appliances with a single press. For example, configure the button to turn on all desk lamps with a short press and turn them off with a long one. A simple automation scenario saves users the trouble of turning on all the lamps in an office.
Convenient control of doors and blinds
With a single press, Button Jeweller can help prepare a facility for the start or end of the day. The device activates scenarios to unlock doors and raise shutters with a short press or to lock and close them with a long one.
Flexible lighting management
Button Jeweller can launch automation scenarios to control lighting throughout the facility or in specific rooms. For example, the device can be set to turn lights on with a single press and turn them off with a double press.
Quick temperature control
Control heating easily during colder seasons. Button Jeweller can activate floor heating or other heating devices as part of a configured automation scenario.
Design that prevents false alarms
The Button Jeweller button housing is designed to prevent accidental pressure if the user sits or lies on it. For added safety, the device can be set to respond only to a double or long press
- Recessed button to prevent unintentional pressure
- Optional alarm activation with long or double pressure
Reliable in any environment
Designed for any environment, Button Jeweller is capable of operating in a variety of conditions thanks to its water- and dust-resistant housing with IP55 rating. With its wide operating temperature range, the device works reliably even in extreme conditions, whether it is a harsh winter in the Netherlands or a scorching summer in the UAE. The button can be worn on the wrist, carried on a keychain or attached to a surface with the Holder accessory
- Portable or mountable
- IP55 for water and dust resistance
- Operates in a temperature range of -10 °C to +40 °C
Powering the Button Ajax
Button Jeweller runs on a preinstalled battery for up to 5 years. Battery status is automatically monitored daily via the Auto Charge Battery Check option. Early low battery alerts in Ajax apps provide installers with sufficient time to replace the battery without interrupting functionality.
- Wireless installation.
- Up to 5 years of operation with preinstalled batteries
- Automatic and daily battery charge monitoring
Technical specifications of the Buttun Ajax
Compatibility with Ajax devices
| Feature | Value |
|---|---|
| Compatibility with Ajax devices |
|
Jeweller communication technology
| Feature | Value |
|---|---|
| Technology | Proprietary wireless for transmission of commands, alarms and events |
| Two-way communication | Yes |
| Advanced anti-sabotage system | Yes |
| Block encryption with mobile key | Yes |
| Instant notifications | Yes |
| Remote control and configuration in Ajax apps | Yes |
| Operating frequencies | 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and radio interference |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,300 m (in open field) |
| Encrypted communication | All data are protected by block encryption with a moving key |
| Frequency hopping | To avoid radio interference and signal inhibition |
Key Features
| Feature | Value |
|---|---|
| Number of buttons | 1 |
| Types of adjustable events | Intrusion, Fire, Emergency help, Panic button, Gas leak alarm, Malfunction, Flooding, Custom |
| Custom Event Selection | Notifications are not sent to the control panel and users |
| LED Backlighting | Indicates command sent, brightness adjustable in Ajax apps |
| Protection against accidental presses | Long or double press |
| Supervision function | Button updates battery status daily (available on hubs with OS Malevich 2.16 or later) |
Anti-sabotage protection
| Feature | Value |
|---|---|
| Protection against counterfeiting | Device authentication |
| Detection of connection loss | Within 36 s |
| Detection time | Depends on Jeweller or Jeweller/Fiber settings |
Power supply
| Feature | Value |
|---|---|
| Battery | 1 × CR2032 (Preinstalled) |
| Type | Type C |
| Calculated battery life | Up to 5 years |
| Button operating voltage | 1,8-3,3 V⎓ |
| Rated operating voltage of the button | 3 V⎓ |
| Idle current consumption (rated voltage) | 0.5 μA (with Battery Auto Charge Control function disabled) |
| Quiescent current consumption (rated voltage) | 2.02 μA (with Battery Auto Charge Control function enabled) |
| Maximum current consumption | 27.8 mA |
| Full battery capacity | 235 mAh |
| Low battery voltage | 2,2 V⎓ |
| Low battery recovery voltage | 2,3 V⎓ |
| Battery voltage at end of life | 1.8 V⎓ (Device is turned off) |
| Battery capacity at end of life | 40 mAh |
| Manufacturer | Panasonic |
Case
| Feature | Value |
|---|---|
| Dimensions | 47 × 35 × 13 mm |
| Weight | 16 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP55 |
Material in the package
| Feature | Value |
|---|---|
| Button Jeweller | Yes |
| CR2032 Battery (pre-installed) | Yes |
| Quick Start Guide | Yes |
Data sheet
- Colour: White
- Type: Panic button
- System: Wireless
