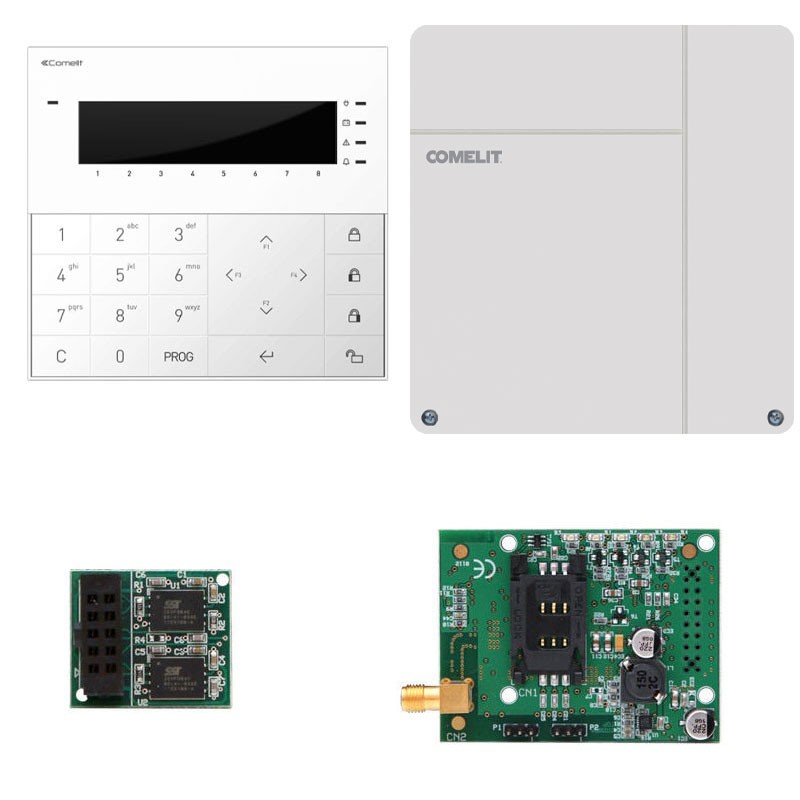

Technical specifications of KIT components:

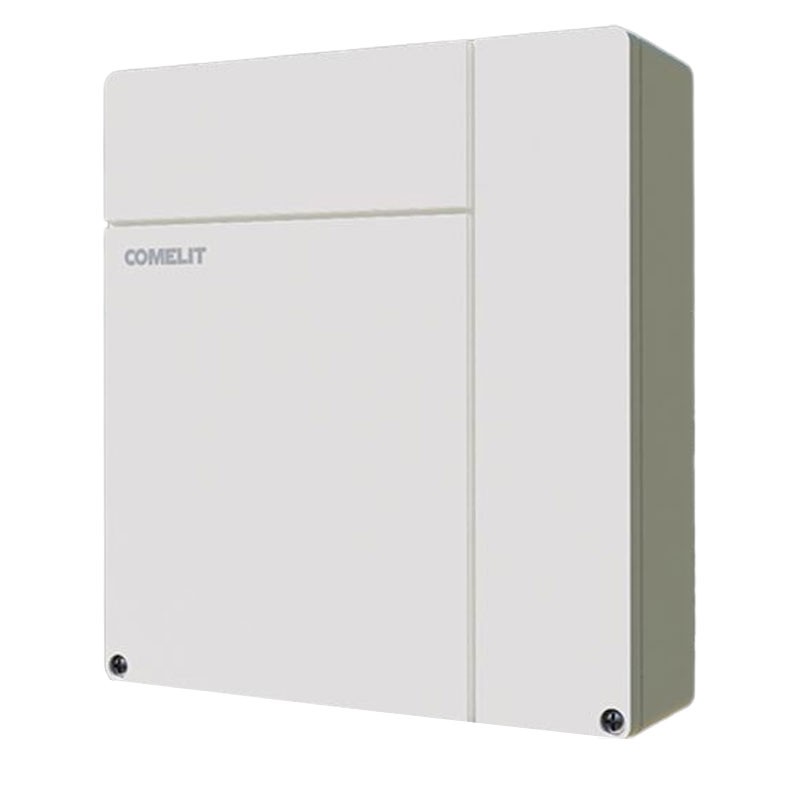

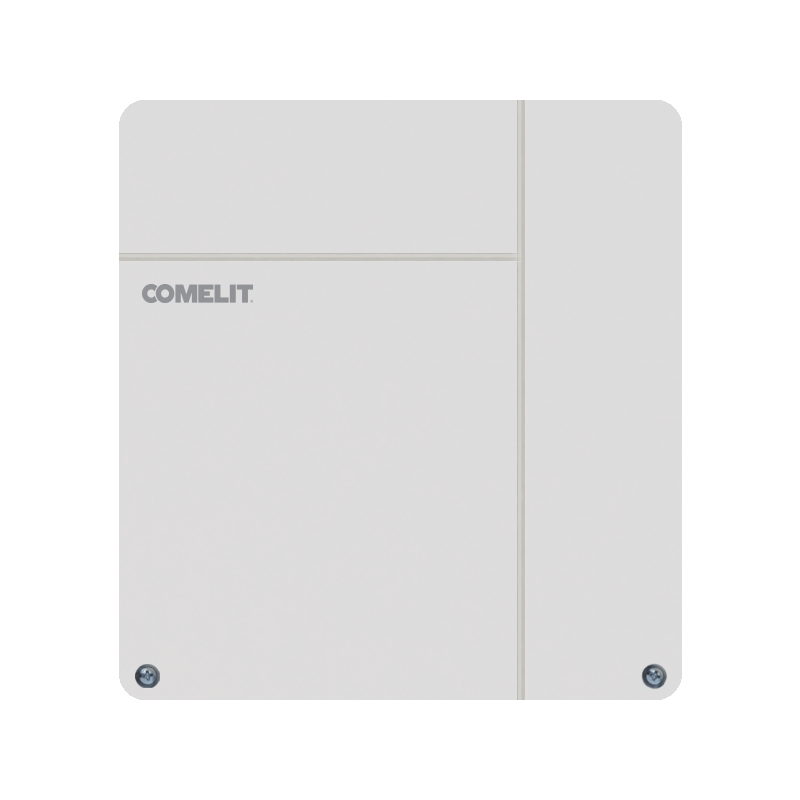

1 piece central plastic box, 1.5A power supply unit (code VEDO10): Vedo series alarm control unit in flameproof ABS wall box with 1.5A switching power supply. Equipped with 8 zones on board, expandable to 18 (2 zones in keypad and 8 radio zones), 1 24-hour zone, built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs. Manages up to 2 areas with 2 different entry programs (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keypads, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver. Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for connection to PC with Safe Manager configuration software. All zones are configurable as NC, NO, single, double and triple balanced. Dimensions (W x H x D) 260 x 280 x 80 mm. EN50131 grade 2. Compatibility with Mycomelit plant management portal.

Features of control panel:

• In flameproof ABS wall-mounted enclosure with 1.5 amp switching power supply.
• Equipped with 8 on-board zones, expandable to 18 (2 zones in keypad and 8 radio zones), 1 24-hour zone
• Built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules
• 1 relay output and 2 open collector outputs
• Manages up to 2 areas with 2 different entry programs (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keypads, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver
• Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply
• Equipped with USB port for connection to PC with Safe Manager configuration software
• All zones are configurable as NC, NO, single, double and triple balanced
• Dimensions (W x H x D) 260 x 280 x 80 mm
• Applied standard: EN50131
• Pollution degree: degree 2
• Number of total inputs 8 expandable to 18 (wired + radio)
• Number of on-board inputs (n°) 8
• Balance type NC, NO, single, double, triple, dual zone, dual zone EOL
• Number of radio zones (no.) 8 Number of outputs (no.) 7
• Number of relay outputs on board the control unit 1 (3A@24VDC)
• Number of TC outputs on board the central unit (no.) 2 Number of areas (no.) 2
• Number of user codes (no.) 8
• Number of installer codes (no.) 3
• Partitions managed (no.) 2
• Number of insertion programs (scenarios) (mm) 8
• Number of time slots (no.) 4
• Number of timers (no.) 4 Audio messages - text to speech (no.) 20
• Central unit programming USB, LAN
• Marks/certifications EN50131 grade 2, Incert
• Telephone numbers managed by the digital communicator (no.) 4
• Phone numbers managed by the voice communicator (no.) 16
• Type of RS485 connection bus
• Maximum number of e-mail addresses (no.) 16
• Integrated digital communicator Yes
• Voice guidance interface management Yes
• Vedo app
• Safe Manager software
• Dimensions: Height (mm) 275 - Width (mm) 255 Depth (mm) 75
• Weight: 1.7 kg
• Operating temperature: -10/+55°C
• Coating type ABS
• Tamper protection Yes
• Power supply: 1 Amp
• Number of proximity readers (no.) 2
• Number of safekey keypads (no.) 2
• Number of Safetouch keypads (no.) 1
• Number of supervisors (no.) 1
• Number of radio receivers (no.) 1
• Number of PAL/IP image conversion modules (mm) 2
• Number of cameras managed (no.) 16
• Audio module Yes
• GSM module Yes
• IP module Yes
• Supply voltage 100÷240
• Current supplied by power supply unit 1500
• Number of on-board auxiliary power supply outputs (no.) 2
• Type of battery provided 12V / 7Ah

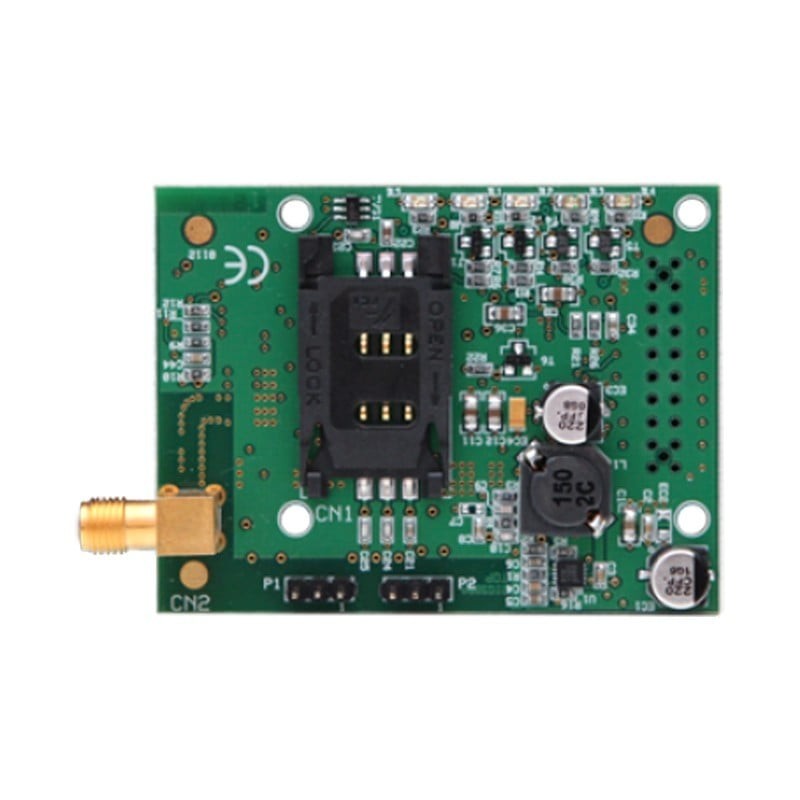

1 piece GSM plug-in communicator board for VEDO SERIES control panels (code VEDOGSM): GSM plug-in communicator expansion board for Vedo series control panels. Allows sending of telephone calls, SMS, MMS and e-mail over the data network. Combined with the voice message board art. VEDOVOICE, it allows remote management of the control panel via SMS and voice communicator. Article certified in security grade 2 according to EN50131 standard.

GSM card features:

• Module type Plug-in gsm card
• 2G technology Yes
• Standards EN EN50131-1, Incert
• Standby current consumption (mA) 10
• Current consumption in transmission (mA) 60
• GSM call handling Yes
• MMS Message Management Yes
• SMS Message Management Yes
• Email management Yes
• Remote management Yes
• Dimensions: Height (mm) 70 Width (mm) 48 Depth (mm) 29
• Operating temperature: -10/+55°C

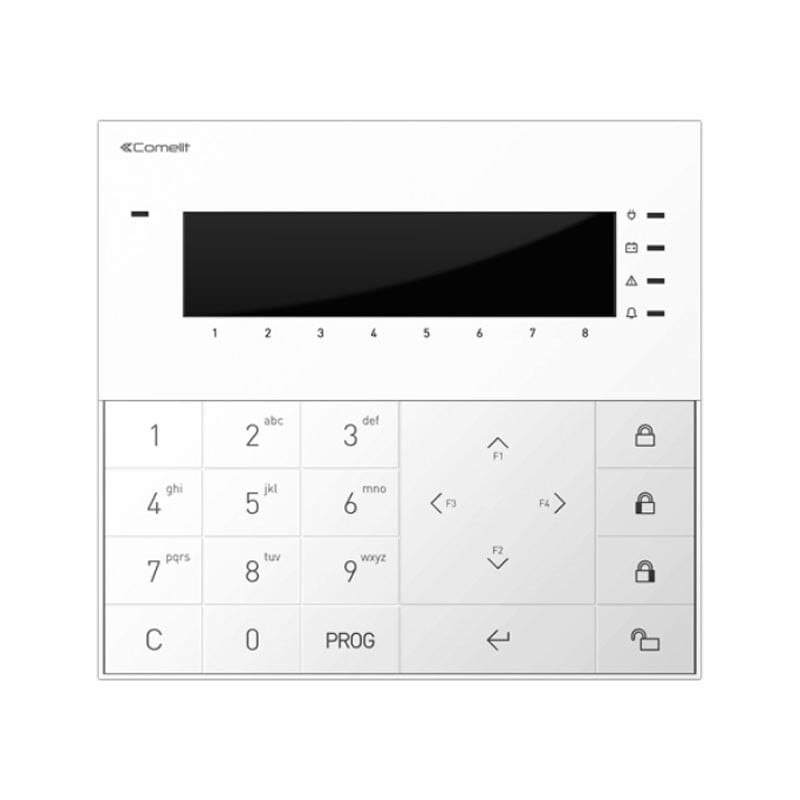

1 piece keyboard for VEDO SERIES control panels (code VEDOKP): Soft-touchkeyboard with alphanumeric LCD screen for management and programming of Vedo series alarm control panels. Equipped with: - 4 signaling LEDs (mains power presence, low battery, fault and alarm) - 2 inputs freely programmable as NC, NO, single, double, triple balanced and double inputs - 4 configurable function keys, - tamper and anti-tear tamper. An on-board light sensor enables optimal management of the keypad backlight. The device is also equipped with a buzzer for audible signaling of various commands. 8-area screen printing. Dimensions 137 x 127 x 24 mm.

Keyboard features:

• Supply voltage 10÷15 VDC
• Power consumption max 1W
• Maximum absorption (mA) 80
• Stand-by absorption (mA) 30
• Alphanumeric LCD display type (2x16 characters)
• Keypad type Soft-touch, with micro-switch
• No. of keys 4, configurable
• No. of inputs (n°) 2
• Tamper Tamper/Tear Tamper
• Alarm activation Yes
• Vedo compatible control panels
• Internal buzzer Yes
• Brightness sensor Yes
• Areas screen-printed on keypad (no.) 8
• Type of bus connection RS485
• BUS termination On-board, enableable
• RS485 half-duplex ports (no.) 1
• Installation Wall-mounted, standard 3-module box 503/503E or similar
• Type Cover materials Plastic
• Product color White
• Operating temperature: -10/+40°C
• Dimensions: Height (mm) 127 Width (mm) 137 Depth (mm) 24
• Weight: 260 grams

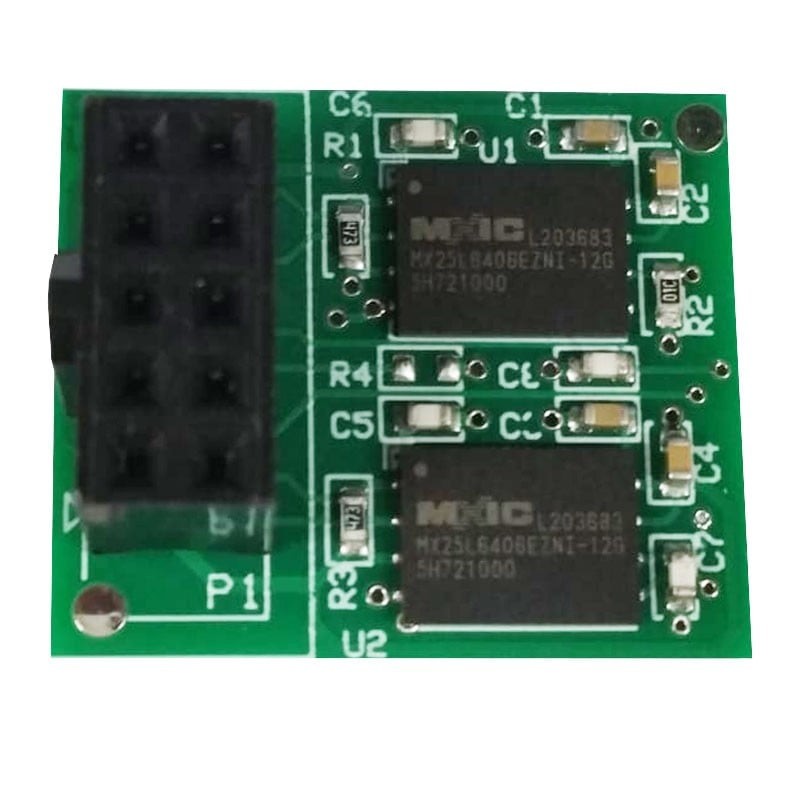

1 piece plug-in voice message board for VEDO SERIES control panels (code VEDOVOICE): Plug-in voice message expansion board for Vedo series control panels. Adds voice guidance functions for remote control panel management and audio messaging (alarm and technical messages). EN50131 grade 2

Plug-in card features:

• Module type Plug-in voice message board
• Standards EN EN50131-1, Incert
• Maximum power consumption (mA) 1
• Voice guidance interface management Yes
• Audio message management Yes
• Dimensions: Height (mm) 24 Width (mm) 21 Depth (mm) 12
• Operating temperature: -10/+55°C
