Comelit VEDO10 GSM 4G burglar alarm kit with keypad VEDO10K4G
COE VEDO10K4G
8023903415643
Comelit VEDO10 GSM 4G burglar alarm kit with VEDO10K4G keypad provides advanced security with 4G mobile communication, voice management and centralized control.

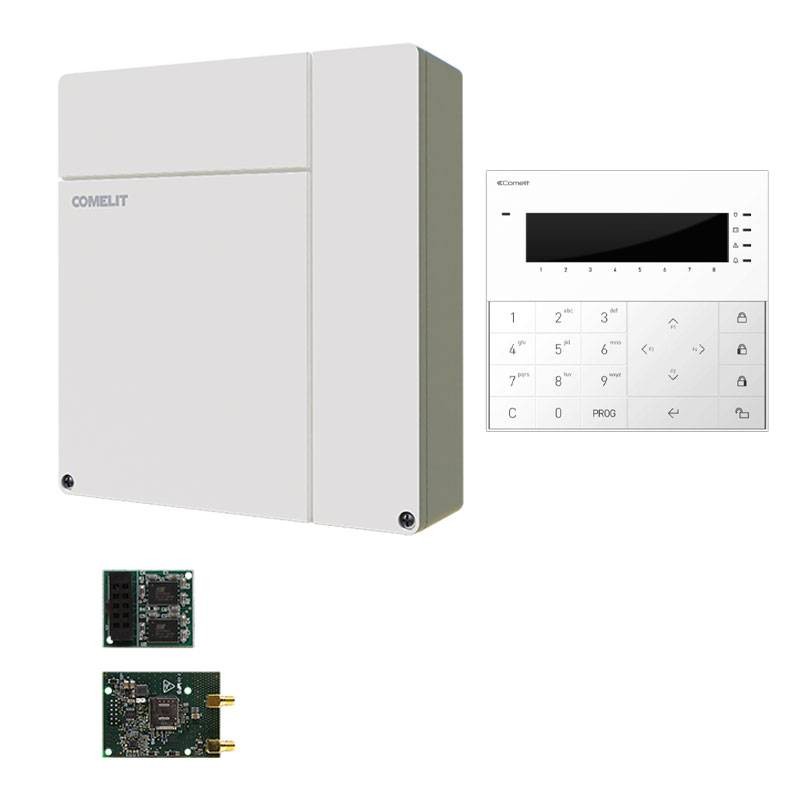

The kit consists of:
-
1x VEDO10 Control Unit (art. VEDO10) with plastic box and 1.5A power supply unit
-
1x GSM/4G module (art. VEDOGSM4G) for mobile connection
-
1x Backlit and functional keyboard (art. VEDOKP)
-
1x Voice card (art. VEDOVOICE) voice messages on plug-in alarm
€530.31
Items Available: 22
: 2
Comelit VEDO10 system: professional protection with 4G connectivity
The Comelit VEDO10K4G burglar alarm kit is the ideal solution for those looking for a complete, reliable and ready-to-use system with 4G GSM connectivity, keypad management and advanced voice features. The system is designed for residential, commercial and professional environments, offering flexibility, ease of use and high security performance.
VEDO10 control panel: heart of the system
The Comelit VEDO10 control unit (Art. VEDO10) is the nerve center of the system, equipped with a plastic box and 1.5A power supply. It supports numerous wired and wireless devices, can handle SMS notifications, voice calls (thanks to the VEDOVOICE module) and works with 4G mobile network, thanks to the included GSM/4G module (art. VEDOGSM4G).
VEDOKP keyboard: intuitive control
The VEDOKP backlit keypad allows complete system management: area arming/disarming, event consultation, basic programming and user interaction via a simple and clear interface. It is ideal for installation at the entrance or in main control areas.
Voice function with VEDOVOICE card
The VEDOVOICE board allows management of customized voice messages, which can be activated in case of alarm or other preset events. This module is useful for direct communication with the user even in critical situations, improving reaction time.
Comelit Vedo10 Central Unit
Comelit VEDO10 burglar alarm control panel with plastic box and 1.5A power supply is an expandable, versatile and professional solution for advanced security installations.
VEDO10: power, modularity and security
The VEDO10 control unit is the heart of Comelit's professional range of alarm systems, designed to meet residential and commercial protection needs, offering expandability, multi-area management and a wide range of integrations.
Robust structure and secure power supply
The control panel is housed in a compact and safe flame-resistant ABS wall-mounted enclosure with a 1.5A switching power supply, capable of handling multiple sensor and siren feeds. It is equipped with a self-resettable fuse that protects in case of overload.
Up to 18 configurable zones
The VEDO10 offers 8 wired zones on board, extendable to 18 total zones by adding 2 zones on keypad and 8 radio zones via optional receiver. All zones are configurable in different modes: NC, NO, single, double and triple balance, to adapt to any type of sensor and situation.
Advanced communication and flexible management
It integrates a PSTN communicator for sending calls and messages over a traditional telephone line, while the USB port enables quick programming with Safe Manager software from a PC. Management is divided into 2 areas, with customizable input scenarios and daily timers, allowing the control panel to be used in multi-zone environments.
| Feature | Value |
|---|---|
| Number of total inputs | 8 expandable to 18 (wired + radio) |
| Number of on-board inputs | 8 |
| Balance type | NC, NO, single, dual, triple, dual zone, dual zone EOL |
| Number of radio zones | 8 |
| Outputs and relays | |
| Number of total outputs | 7 |
| Number of on-board relay outputs | 1 (3A @ 24VDC) |
| Area and code management | |
| Number of areas | 2 |
| Number of user codes | 8 |
| Number of installer codes | 3 |
| Partitions managed | 2 |
| Insertion programs (scenarios) | 8 |
| Timers and messaging | |
| Number of time slots | 4 |
| Number of timers | 4 |
| Audio messages (Text-to-Speech) | 20 |
| Communication and programming | |
| Programming of the central unit | USB, LAN |
| Type of bus connection | RS485 |
| Built-in digital communicator | Yes |
| Voice guidance management | Yes |
| GSM module | Yes |
| IP module | Yes |
| Audio module | Yes |
| Numbers and contacts | |
| Telephone numbers (digital communicator) | 4 |
| Telephone numbers (voice communicator) | 16 |
| Maximum number of e-mail addresses | 16 |
| Compatibility and software | |
| App | I see |
| Software | Safe Manager |
| Facilities management | MyComelit (compatible) |
| Supported devices | |
| Proximity readers | 2 |
| Safekey keypads | 2 |
| Safetouch keypads | 1 |
| Supervisors | 1 |
| Radio Receivers | 1 |
| PAL/IP image conversion modules | 2 |
| Number of cameras managed | 16 |
| Power supply | |
| Power supply voltage | 100 TO 240 VAC |
| Current supplied by the power supply unit | 1,5 A |
| Integrated power supply | 1 A |
| Battery type | 12 V / 7 Ah |
| Construction and environment | |
| Casing material | ABS |
| Tamper protection | Yes |
| Operating temperature | -10 ÷ +55 °C |
| Dimensions and weight | |
| Height | 275 mm |
| Width | 255 mm |
| Depth | 75 mm |
| Weight | 1.700 g |
| Standards | |
| Certifications | EN50131 Grade 2, Incert |

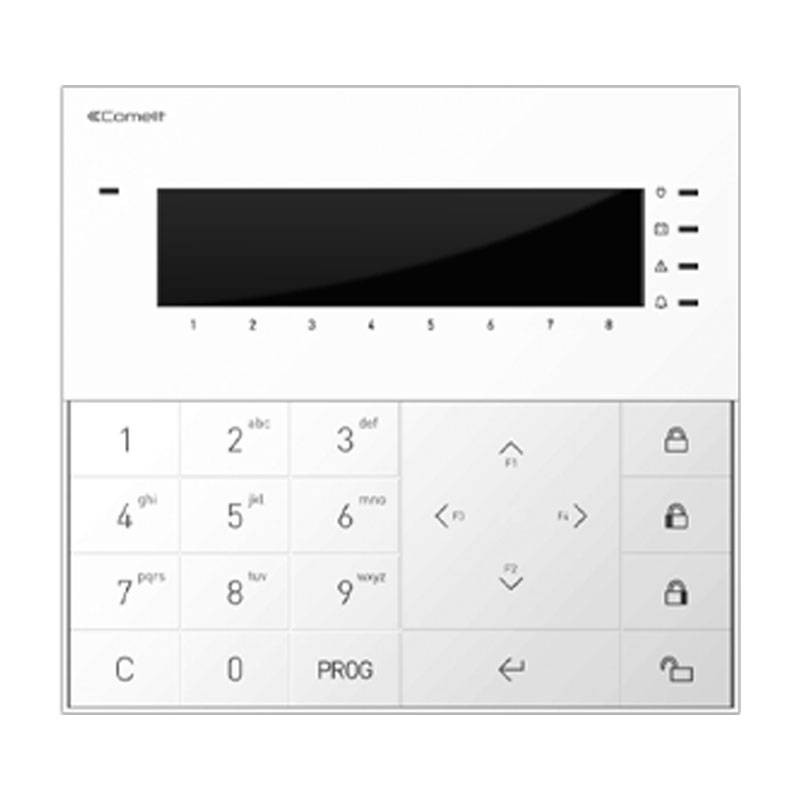

Comelit LCD keypad for Vedo control panels
The standard LCD keypad for Comelit Vedo control panels is the ideal device for complete alarm system management, with alphanumeric screen, soft-touch keys and advanced control functions.
-
Alphanumeric LCD display with 8-area screen printing
-
4 status LEDs: power, battery, fault, alarm
-
2 programmable inputs (NC, NO, balanced)
-
4 customizable function keys
-
Tamper-proof and anti-tear tamper
-
Automatic backlighting with light sensor.
Advanced and intuitive control
Comelit's standard LCD keypad is designed for simple, fast and secure interaction with the Vedo series alarm control panels. With a clear, backlit alphanumeric screen, it allows complete management of the system: arming/disarming, event consultation, area management and custom configurations.
Soft-touch keys and status LEDs for immediate use
The keypad integrates 4 clearly visible indicator LEDs that indicate the system status in real time:
-
Green for presence of mains power
-
Yellow for low battery
-
Orange for anomalies
-
Red for active alarm.
Soft-touch keys and 4 programmable functions offer the user the ability to customize the use of the keypad to suit the needs of the system.
Programmable inputs and active safety
In addition to control, the LCD keypad integrates 2 freely configurable inputs such as:
-
NC (normally closed)
-
NO (normally open)
-
Single, double, triple balancing
-
"Double" mode for advanced applications.
In addition, the presence of anti-tear and anti-tamper tamper ensures that any attempt at forced removal is immediately detected and reported to the control panel.
Visual comfort and audible alerts
A built-in light sensor automatically adjusts the backlighting of the keypad, improving readability in any environmental condition. A built-in buzzer provides audible feedback for every relevant command or event, enhancing user experience and security.
| Feature | Value |
|---|---|
| Display type | Alphanumeric LCD (2x16 characters) |
| Keypad type | Soft-touch with micro-switch |
| Number of keys | 4 (configurable) |
| Number of inputs | 2 |
| Tamper | Tamper Proof/Tear Proof |
| Alarm activation | Yes |
| Compatible control panels | I see |
| Internal buzzer | Yes |
| Brightness sensor | Yes |
| Screen-printed areas on keypad | 8 |
| Communication | |
| Type of bus connection | RS485 |
| BUS termination | On board, enableable |
| RS485 half-duplex ports | 1 |
| Hardware features | |
| Installation | Wall-mounted, standard 3-module box 503/503E or similar |
| Cladding material | Plastic |
| Color | White |
| Operating Temperature | -10 ÷ +40 °C |
| Height | 127 mm |
| Width | 137 mm |
| Depth | 24 mm |
| Weight | 260 g |
| Electrical characteristics | |
| Supply voltage | 10 TO 15 VDC |
| Maximum power consumption | 80 mA |
| Rated absorption (stand-by) | 30 mA (@13.8V) |

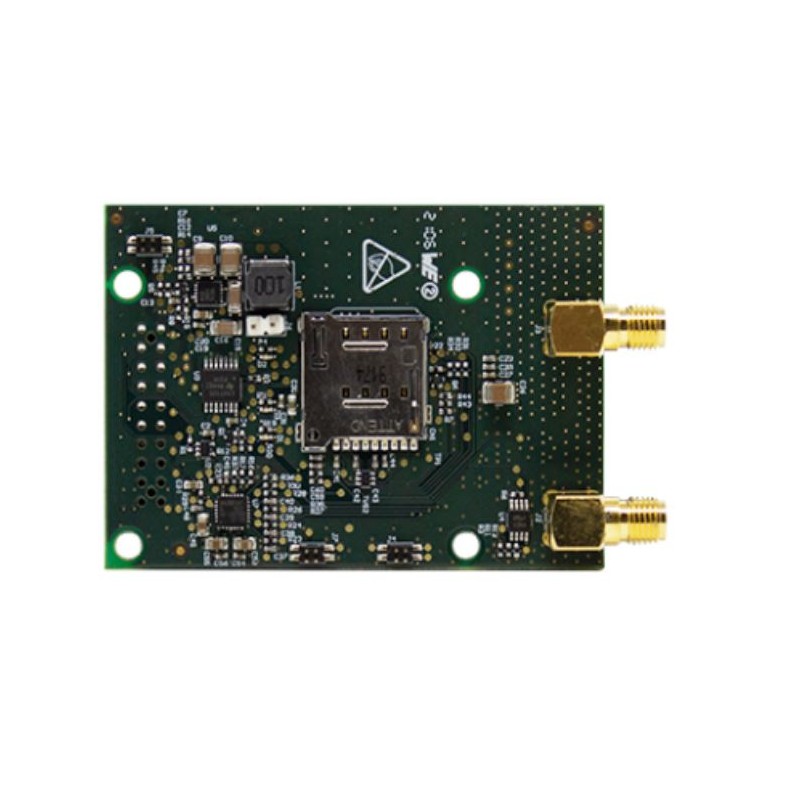

4G communicator card for Vedo control panels
VEDOGSM4G 4G communicator card for Vedo control panels enables voice communication, SMS, e-mail and remote management via data network and Comelit app.
- Communication over 4G GSM network for Vedo control panels
- Sending calls, SMS, MMS and email
- Supports digital protocols and date/time synchronization
- Compatible with VEDOVOICE voice message board
- Remote management via Comelit app
- Supplied with 2 antennas included
| Feature | Value |
|---|---|
| Module type | Plug-in GSM card |
| 2G technology | Yes |
| 4G technology | Yes |
| Sending digital protocols | SIA, Contact-ID (IP) |
| Stand-by power consumption | 36 mA |
| Current consumption in transmission | 80 mA |
| Frequency band | EGSM900, DCS1800, WCDMA B1/B8, LTE FDD B1/B3/B7/B8/B20/B28 |
| SIM card format | Micro SIM |
| Firmware version compatibility | FW 2.12 |
| Communication | |
| GSM call handling | Yes |
| SMS message handling | Yes |
| MMS Message Management | Yes |
| Email management | Yes |
| Voice guidance interface management | Yes |
| Remote management | Yes |
| NTP service | Yes |
| Modes of operation | Pass-through |
| IoT connection to Comelit Cloud | Yes |
| Hardware features | |
| Height | 74 mm |
| Width | 48 mm |
| Depth | 29 mm |
| Operating temperature range | -10 ÷ +55 °C |

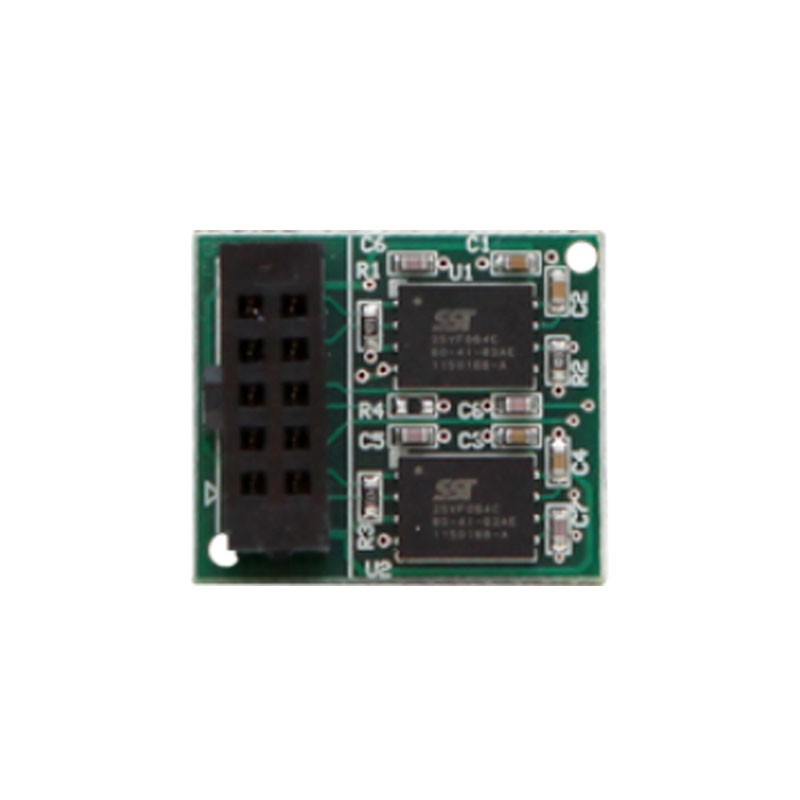

VedoVoice voice message board for Vedo control panels
Plug-in voice message expansion board for Vedo series control panels. Adds voice guidance functions for remote control panel management and audio messaging (alarm and technical messages). EN50131 grade 2
| Feature | Value |
|---|---|
| Module type | Plug-in voice message board |
| Standards | EN50131-1, Incert |
| Maximum current consumption | 1 mA |
| Communication | |
| Voice guidance interface management | Yes |
| Audio message management | Yes |
| Hardware features | |
| Height | 24 mm |
| Width | 21 mm |
| Depth | 12 mm |
| Operating temperature range | -10 ÷ +55 °C |
