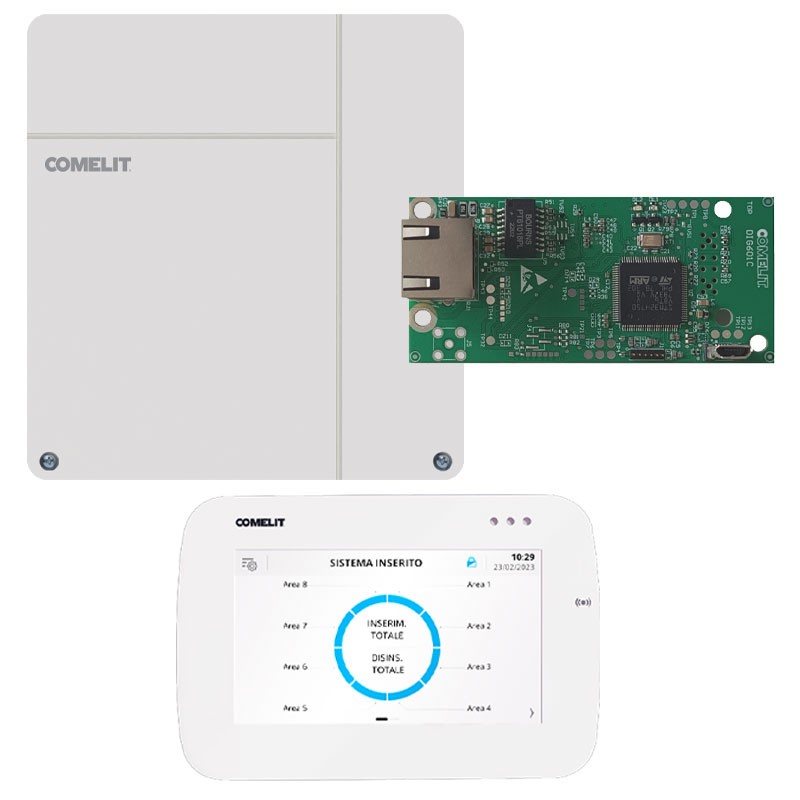

Kit component specifications:

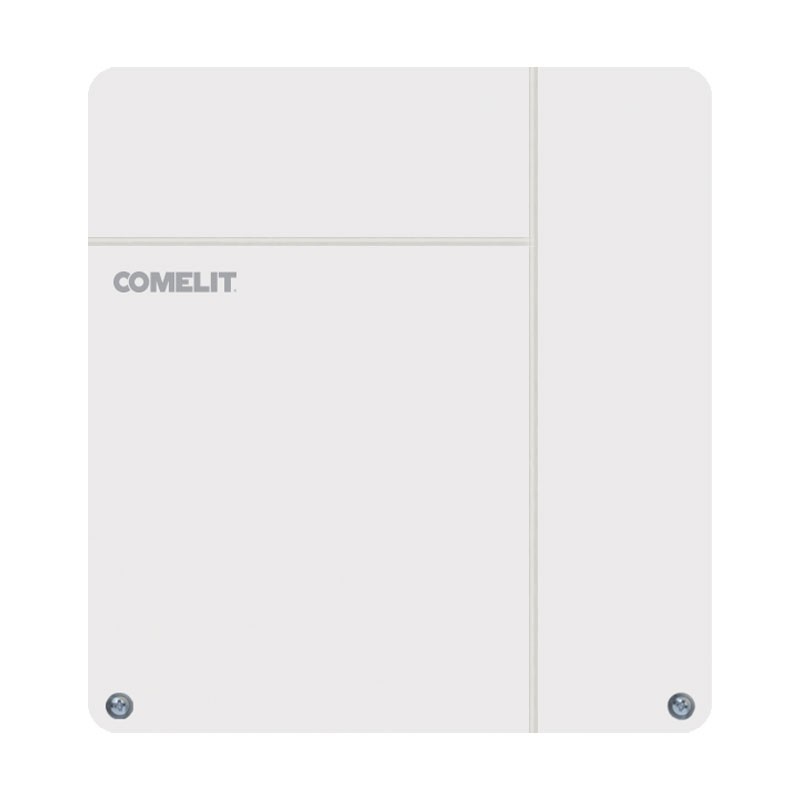

Vedo 34 contral unit:

• Vedo series alarm control panel in flameproof ABS wall-mounted case with 1.5A switching power supply.
• Features 8 on-board zones, expandable to 34 mixed wired/radio zones, 1 24-hour zone, double function for up to 68 zones, built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs
• Manages up to 8 areas with 8 different input programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keypads, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers
• Self-resetting fuse for siren power output, RS485 serial bus and sensor power supply
• Equipped with USB port for connection to PC with Safe Manager configuration software
• All zones are configurable as NC, NO, single, double and triple balanced and as double zone. Dimensions (W x H x D) 260 x 280 x 80 mm
• EN50131 grade 2
• Compatibility with Mycomelit plant management portal



Features:

• Number of total inputs 8 expandable to 34
• Number of on-board inputs (no.) 8
• Double function Yes
• Maximum number of zones with Double function (no.) 68
• Balance type NA, NC, single, double, triple
• Number of radio zones (no.) 34
• Number of outputs (no.) 36
• Number of relay outputs on board the control unit 1 (3A@24VDC)
• Number of areas (no.) 8
• Number of user codes (no.) 32
• Number of installer codes (no.) 6
• Partitions managed (no.) 2
• Number of insertion programs (scenarios) (mm) 8
• Number of time slots (no.) 16
• Number of timers (no.) 8
• Audio messages - text to speech (no.) 32
• Central unit programming USB, LAN
• Standards EN EN50131 grade 2, Incert



Communications:

• Phone numbers managed by the digital communicator (no.) 4
• Phone numbers managed by the voice communicator (no.) 16
• Type of RS485 connection bus
• Maximum number of e-mail addresses (no.) 16
• Integrated digital communicator Yes
• Voice guidance interface management Yes



Software/firmware features:

• Vedo app
• Safe Manager software
• MyComelit Compatible Systems Management



Hardware Features:

• Dimensions: Height (mm) 275 - Width (mm) 255 - Depth (mm) 75
• Product weight (g) 1700
• Operating temperature (°C) -10 ÷ 55
• Type ABS coating materials
• Tamper protection Yes



Expansion modules on Bus:

• Number of IN/OUT expansions (no.) 8
• Number of proximity readers (no.) 8
• Number of Safekey keypads (no.) 8
• Number of Safetouch keypads (no.) 2
• Number of supervisors (no.) 2
• Number of radio receivers (no.) 2
• Number of PAL/IP image conversion modules (mm) 2
• Number of cameras managed (no.) 16



Plug-in expansion modules:

• Audio module
• GSM module
• IP module



Electrical characteristics:

• Current supplied from the control panel power supply 1500
• Output voltage from the power supply of the central unit 13.8VDC
• Number of on-board auxiliary power supply outputs (no.) 2



Battery type 12V / 7Ah not included, to be purchased separately:

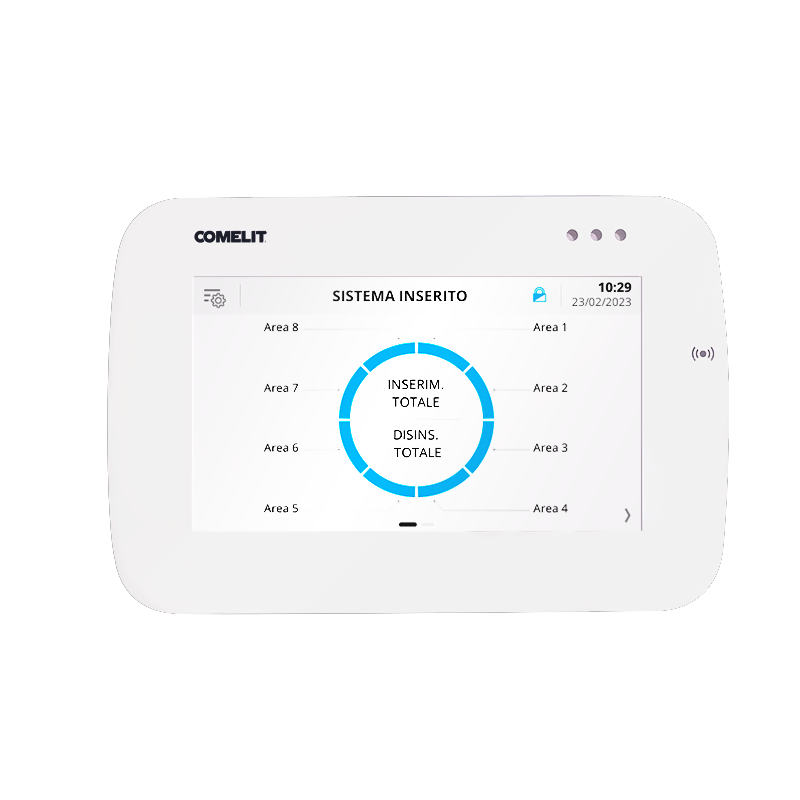

VEDO5TPRW Safe Touch Screen Keyboard:

• For management and programming of VEDO series alarm control panels via simple and intuitive software
• The device consists of a 5'' LCD screen and integrated proximity reader
• It is also equipped with 1 input, freely programmable as NC, NO, single, double, triple balanced and double, and 1 output
• Size 125x85mm, wall projection 10mm and Power consumption 2W, color white



Features:

• Display type 5 inch
• Touch screen keyboard Yes
• Proximity reader Integrated
• Ethernet port No
• Number of inputs (no.) 1
• Number of outputs (no.) 1
• Tamper Yes
• Compatible control panels: Vedo



Communication:

• RS485 connection bus type
• BUS termination On board, enableable



Hardware Features:

• In-wall installation, standard 3-module box 503/503E or similar
• Type ABS coating materials
• Product color White
• Operating temperature (°C) -15 to 55
• Dimensions Height (mm) 103 - Width (mm) 154 - Depth (mm) 17
• Product weight (g) 199.98
• Supply voltage 10-24 VDC
• Maximum absorption (mA) 150
• Stand-by power consumption (mA) 60

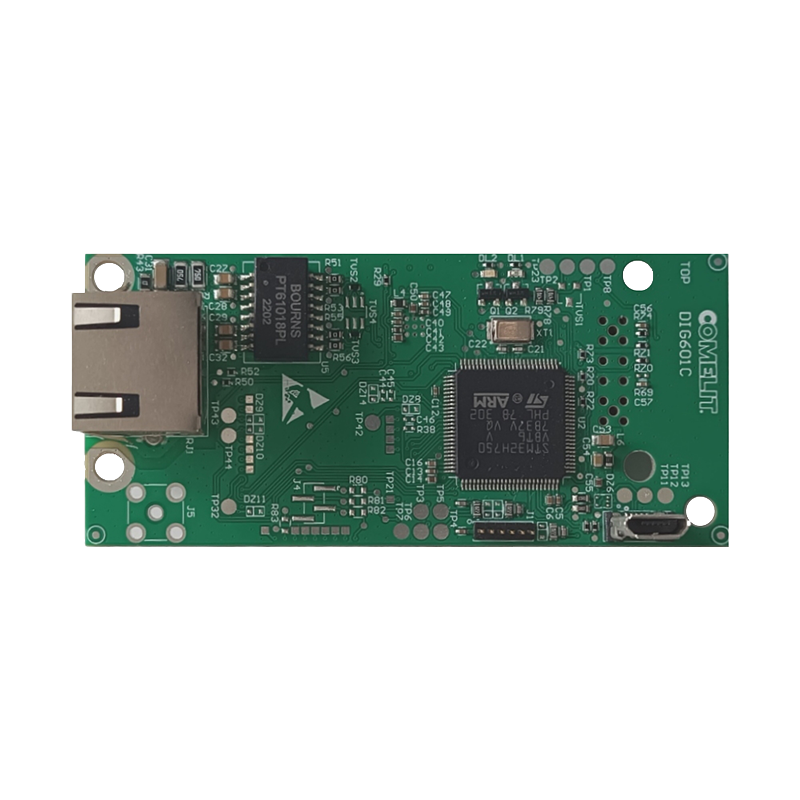

VEDOIP IP Communication Card:

• Plug-in expansion board for communication over Ethernet TCP/IP network for Vedo series control panels.
• Allows remote interaction for control panel management and firmware updating of the control panel, keypads, proximity readers and input/output modules
• Built-in Web server. EN50131 grade 2



Features:

• EN Standards EN EN50131-1, EN50131-3, Incert
• Maximum power consumption (mA) 55
• Email management Yes
• Ethernet connection type
• Remote management Yes
• Embedded Web server Yes
• Dimensions: Height (mm) 75 - Width (mm) 31 - Depth (mm) 33
• Operating temperature (°C) -10 ÷ 55
