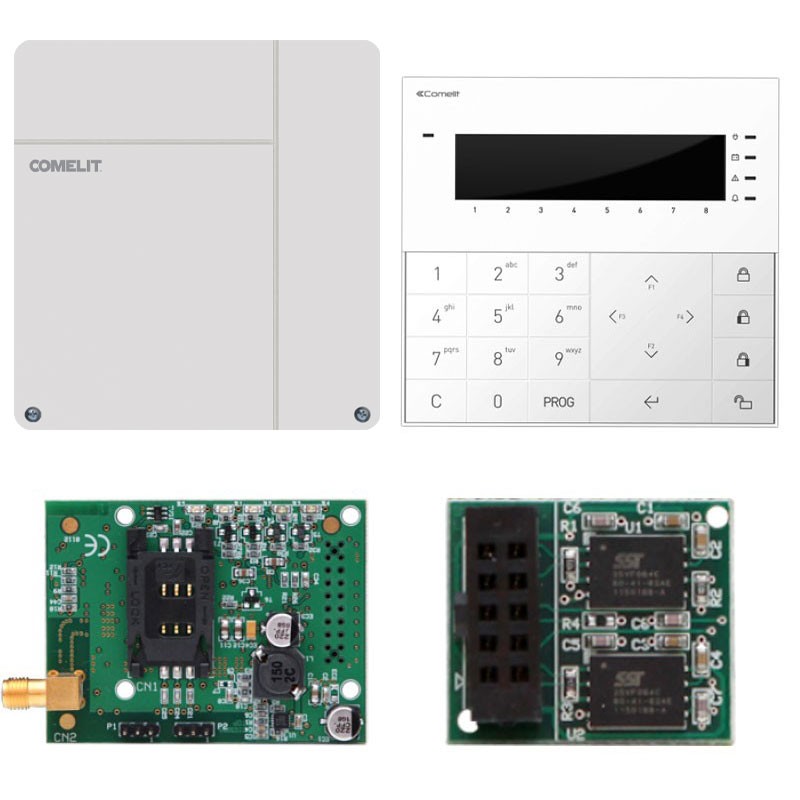

Kit component specifications:

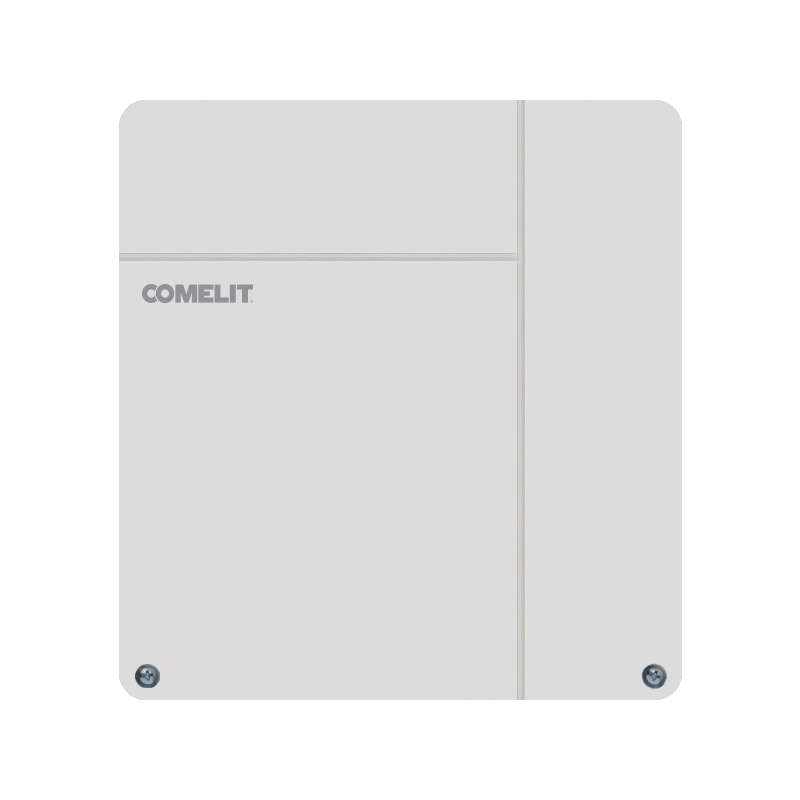

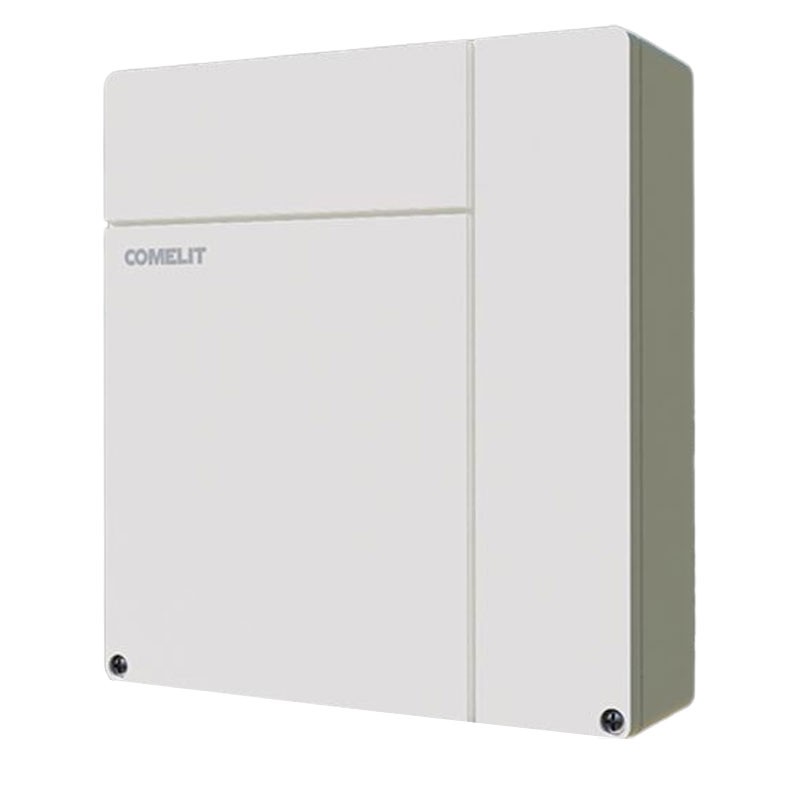

1-piece Vedo 34 central unit, plastic box, 1.5A power supply (code VEDO34): Vedo series alarm control panel in flameproof ABS wall box with 1.5A switching power supply. Features 8 zones on board, expandable to 34 mixed wired/radio zones, 1 24-hour zone, double function for up to 68 zones, built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs. Manages up to 8 areas with 8 different input programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keypads, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers. Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for PC connection with Safe Manager configuration software. All zones are configurable as NC, NO, single, double and triple balanced and as double zone. Dimensions (W x H x D) 260 x 280 x 80 mm. EN50131 grade 2. Compatibility with Mycomelit facility management portal.



Technical features:

• Number of total inputs: 8 expandable to 34
• Number of inputs on board (n°) 8
• Double function Yes
• Maximum number of zones with double function (no.) 68
• Balance type NA, NC, single, double, triple
• Number of radio zones (no.) 34
• Number of outputs (no.) 36
• Number of relay outputs on board the control unit: 1 (3A@24VDC)
• Number of areas (no.) 8
• Number of user codes (no.) 32
• Number of installer codes (no.) 6
• Partitions managed (no.) 2
• Number of insertion programs (scenarios) (mm)8
• Number of time slots (no.) 16
• Number of timers (no.) 8
• Audio messages - text to speech (no.) 32
• Central unit programming USB, LAN
• Standards EN EN50131 grade 2, Incert
• Telephone numbers managed by the digital communicator (no.) 4
• Telephone numbers managed by the voice communicator (no.) 16
• Type of RS485 connection bus
• Maximum number of e-mail addresses (no.) 16
• Integrated digital communicator Yes
• Voice guidance interface management Yes
• Software/firmware features App: Vedo - Safe Manager software - MyComelit Compatible system management
• Dimensions: Height (mm) 275 - Width (mm) 255 - Depth (mm) 75
• Weight: 1.7 kg
• Operating temperature: -10/+55°C
• Coating material type ABS
• Tamper protection Yes
• Number of IN/OUT expansions (no.) 8
• Number of proximity readers (no.) 8
• Number of Safekey keypads (no.) 8
• Number of Safetouch keypads (no.) 2
• Number of supervisors (no.) 2
• Number of radio receivers (no.) 2
• Number of PAL/IP image conversion modules (mm) 2
• Number of cameras managed (no.) 16
• Audio module Yes
• GSM module Yes
• IP module Yes
• Current supplied by the power supply unit of the central unit: 1500
• Output voltage from the power supply of the central unit: 13.8VDC
• Number of on-board auxiliary power supply outputs (n°): 2
• Battery type: 12V / 7Ah

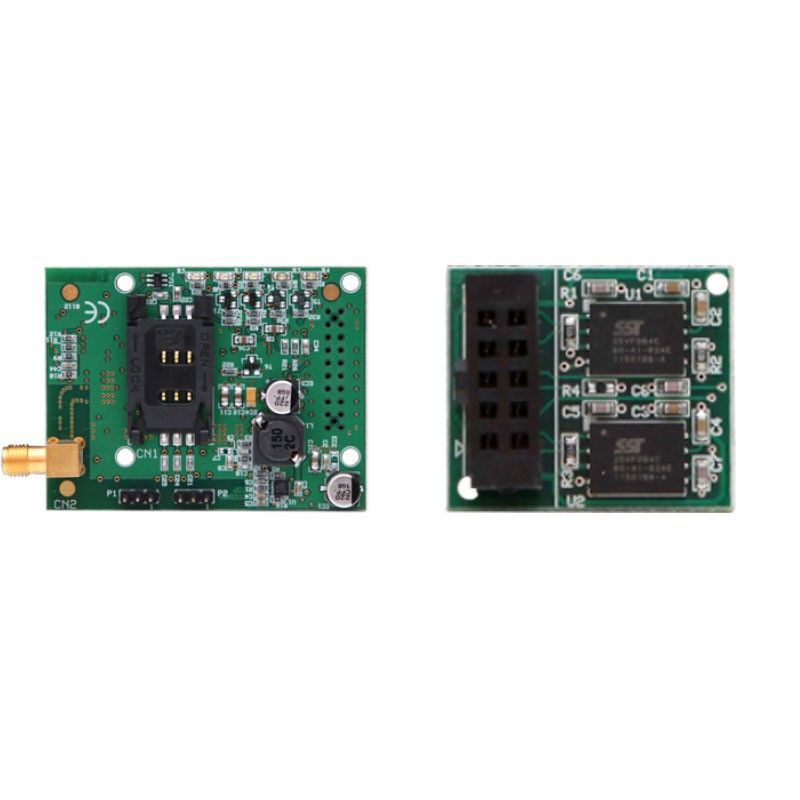

1 piece GSM plug-in communicator board for vedo series control panels (code VEDOGSM): GSM plug-in communicator expansion board for Vedo series control panels. Allows sending of phone calls, SMS, MMS and e-mail over the data network. Combined with the voice message board art. VEDOVOICE, it allows remote management of the control panel via SMS and voice communicator. Article certified in security grade 2 according to EN50131 standard.



Technical features:

• Module type Plug-in gsm card
• 2G technology Yes
• Standards EN EN50131-1, Incert
• Standby current consumption (mA) 10
• Current consumption in transmission (mA) 60
• GSM call handling Yes
• MMS Message Management Yes
• SMS Message Management Yes
• Email management Yes
• Remote management Yes
• Dimensions: Height (mm) 70 - Width (mm) 48 - Depth (mm) 29
• Operating temperature: -10/+55°C

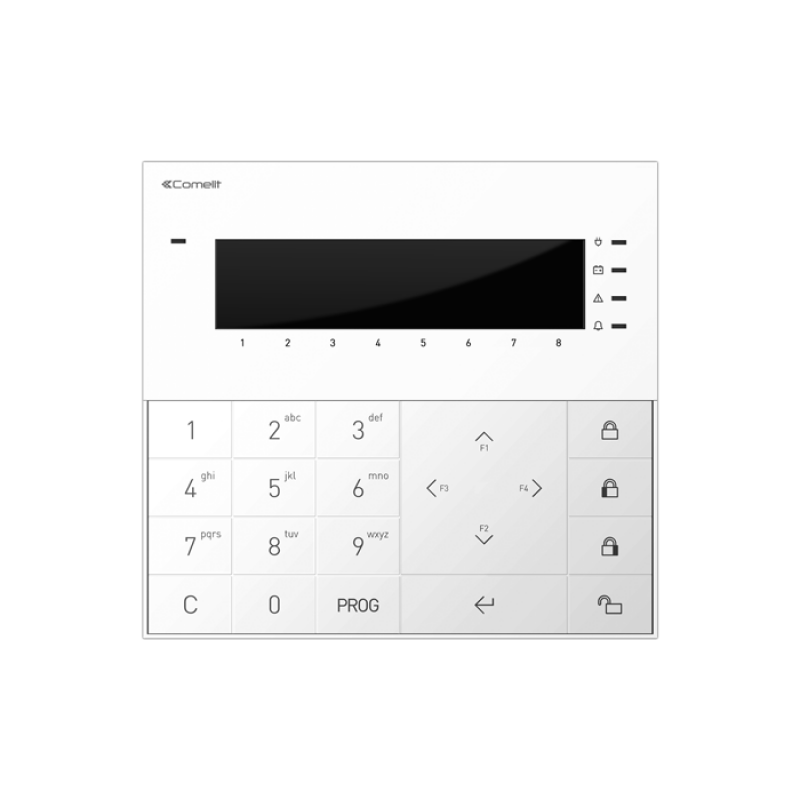

1 piece keyboard for vedo series control panels (code VEDOKP): Soft-touch keyboard with alphanumeric LCD screen for management and programming of Vedo series alarm control panels. Equipped with: - 4 signaling LEDs (mains power presence, low battery, fault and alarm) - 2 inputs freely programmable as NC, NO, single, double, triple balanced and double inputs - 4 configurable function keys, - tamper and anti-tear tamper. An on-board light sensor enables optimal management of the keypad backlight. The device is also equipped with a buzzer for audible signaling of various commands. 8-area screen printing. Dimensions 137 x 127 x 24 mm.




Specifications:

• Alphanumeric LCD display type (2x16 characters).
• Soft-touch keyboard type, with micro-switches
• No. of keys 4, configurable
• No. of inputs (n°) 2
• Tamper Tamper/Tear Alarm activation Yes
• Compatible control panels: Vedo
• Internal buzzer Yes
• Brightness sensor Yes
• Areas screen-printed on keypad (no.) 8
• Type of bus connection RS485
• BUS termination On-board, enableable
• RS485 half-duplex ports (no.) 1
• Installation: wall-mounted, standard 3-module box 503/503E or similar
• Type of covering materials: plastic
• Color White
• Operating Temperature: -10/+40°C
• Dimensions: Height (mm) 127 - Width (mm) 137 - Depth (mm) 24
• Weight: 260 grams
• Supply voltage 10÷15 VDC
• Power consumption max 1W
• Maximum absorption (mA) 80
• Stand-by absorption (mA) 30



1 piece plug-in voice message board for vedo series control panels (code VEDOVOICE): Plug-in voice message expansion board for Vedo series control panels. Adds voice guidance functions for remote control panel management and audio messaging (alarm and technical messages). EN50131 grade 2.



Specifications:

• Module type Plug-in voice message board
• Standards EN EN50131-1, Incert
• Maximum power consumption (mA) 1
• Voice guidance interface management Yes
• Audio message management Yes
• Dimensions: Height (mm) 24 - Width (mm) 21 - Depth (mm) 12
• Operating temperature: -10/+55°C
