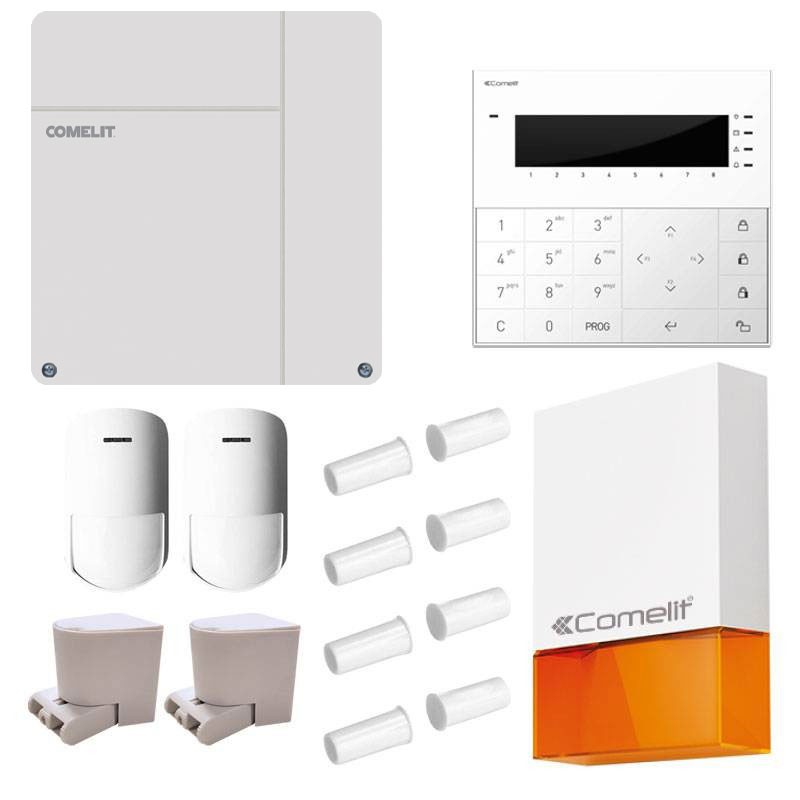

Component specifications:

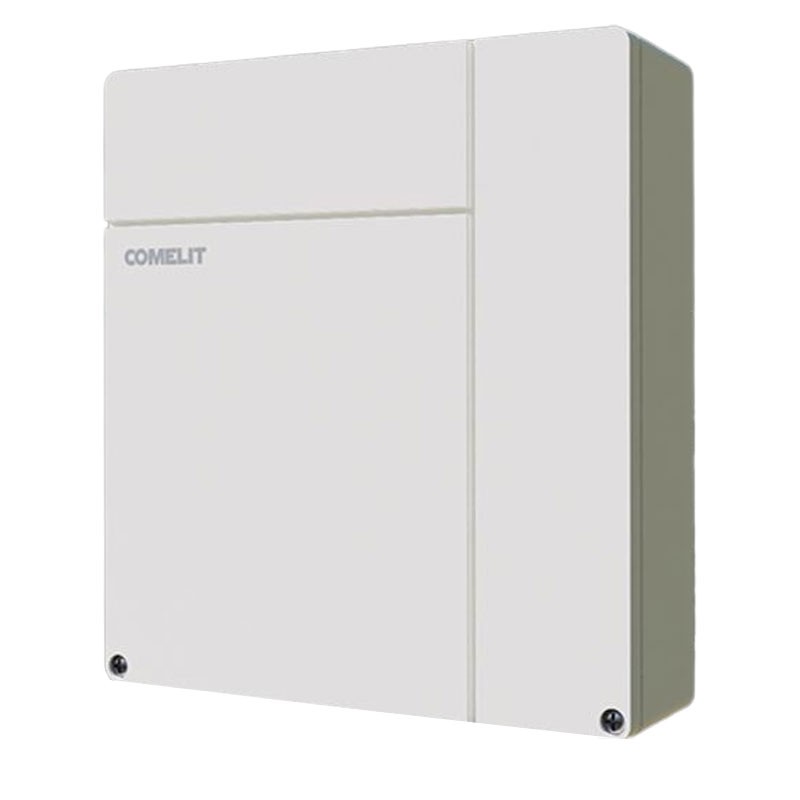

Vedo 10 central unit with the following features: Vedo series alarm control unit in flameproof ABS wall-mounting container with 1.5A switching power supply. Equipped with 8 zones on board, expandable to 18 (2 keypad zones and 8 radio zones), 1 24-hour zone, integrated PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs. Manages up to 2 areas with 2 different switching programmes (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keypads, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver. Self-resetting fuse for siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for connection to PC with Safe Manager configuration software. All zones are configurable as NC, NO, single, double and triple balanced. Dimensions (W x H x D) 260 x 280 x 80 mm. EN50131 grade 2. Compatibility with Mycomelit plant management portal.

• In flameproof ABS wall-mounted case with 1.5-amp switching power supply.
• Equipped with 8 on-board zones, expandable to 18 (2 zones in keypad and 8 radio zones), 1 24-hour zone
• Built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules
• 1 relay output and 2 open collector outputs
• Manages up to 2 areas with 2 different entry programs (scenarios) and daily timers, 2 proximity readers, 2 Safe Key keypads, 1 Safe Touch, 1 Planux/Mini Touch Manager and 1 radio receiver
• Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply
• Equipped with USB port for connection to PC with Safe Manager configuration software
• All zones are configurable as NC, NO, single, double and triple balanced
• Dimensions (W x H x D) 260 x 280 x 80 mm
• Applied standard: EN50131
• Pollution degree: degree 2
• Number of total inputs 8 expandable to 18 (wired + radio)
• Number of on-board inputs (n°) 8
• Balance type NC, NO, single, double, triple, dual zone, dual zone EOL
• Number of radio zones (no.) 8 Number of outputs (no.) 7
• Number of relay outputs on board the control panel 1 (3A@24VDC)
• Number of TC outputs on board the central unit (no.) 2 Number of areas (no.) 2
• Number of user codes (no.) 8
• Number of installer codes (no.) 3
• Partitions managed (no.) 2
• Number of insertion programs (scenarios) (mm) 8
• Number of time slots (no.) 4
• Number of timers (no.) 4 Audio messages - text to speech (no.) 20
• Central unit programming USB, LAN
• Marks/certifications EN50131 grade 2, Incert



Communication:

• Telephone numbers managed by the digital communicator (no.) 4
• Phone numbers managed by the voice communicator (no.) 16
• Type of RS485 connection bus
• Maximum number of e-mail addresses (no.) 16
• Integrated digital communicator Yes
• Voice guidance interface management Yes



SOFTWARE/FIRMWARE Features:

• Vedo App
• Safe Manager software



HARDWARE Features:

• Dimensions: Height (mm) 275 - Width (mm) 255 Depth (mm) 75
• Weight: 1.7 kg
• Operating temperature: -10/+55°C
• Coating type ABS
• Tamper protection Yes
• Power supply: 1 Amp



Electrical characteristics:

• Supply voltage 100÷240
• Current supplied by power supply unit 1500
• Number of on-board auxiliary power supply outputs (no.) 2
• Type of battery provided 12V / 7Ah

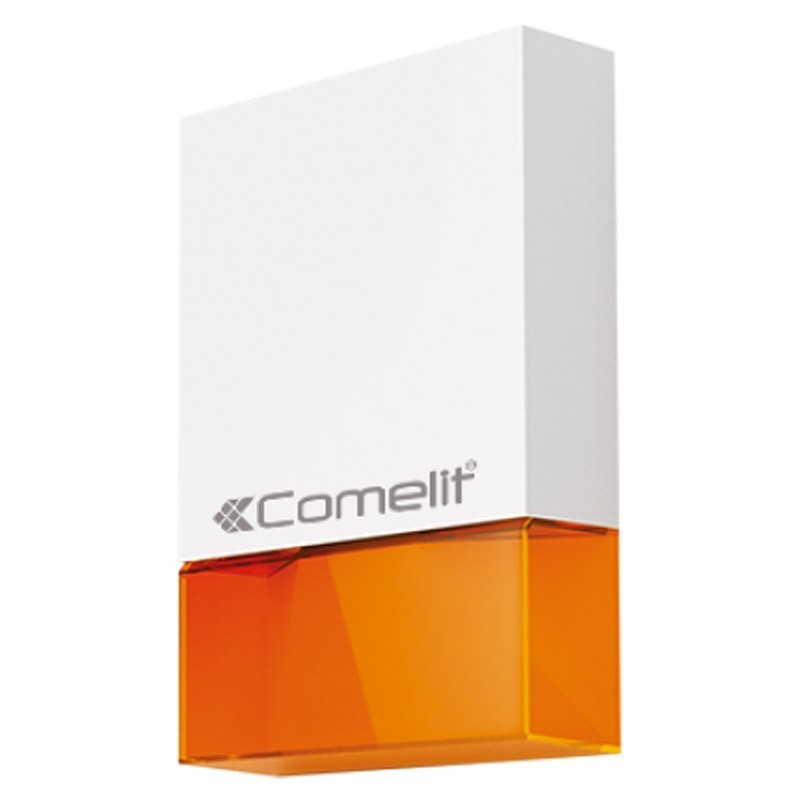

Comelit 700 GR.2 Wired Outdoor Burglar Alarm Siren White, with piezoelectric speaker, microcontroller-controlled, equipped with LED flashing light. Two additional LEDs (one red and one green) for displaying system status, power failures, deterrent function and installation mode. Integrated bypassable tamper contact balancing resistor (1.8Kohm value, already suitable for Comelit Vedo control panels). Configurable polarity of separate inputs for beacon and speaker. Jumpers for programming: input polarity and logic, maximum alarm time, type of sound, tamper balancing, deterrent function.

• Sound pressure 103db(A) @ 1m
• Max alarm tone duration 10 minutes
• Configurable alarm command (negative and positive presence or absence)
• Tamper Tamper/Tear Tamper
• LED indicator light
• Marks/certifications INCERT, EN50131-4
• IP34 degree of protection
• Vandal-resistant degree of protection IK08
• Dimensions: H x W x D 308x209x70
• Weight 800 grams (without battery not included)
• Operating temperature (°C) -25÷55
• Supply voltage 12.8÷15
• Maximum current consumption 350mA
• Current consumption at rest 36mA
• Battery Housing for 12V / 2.0Ah battery (not included)

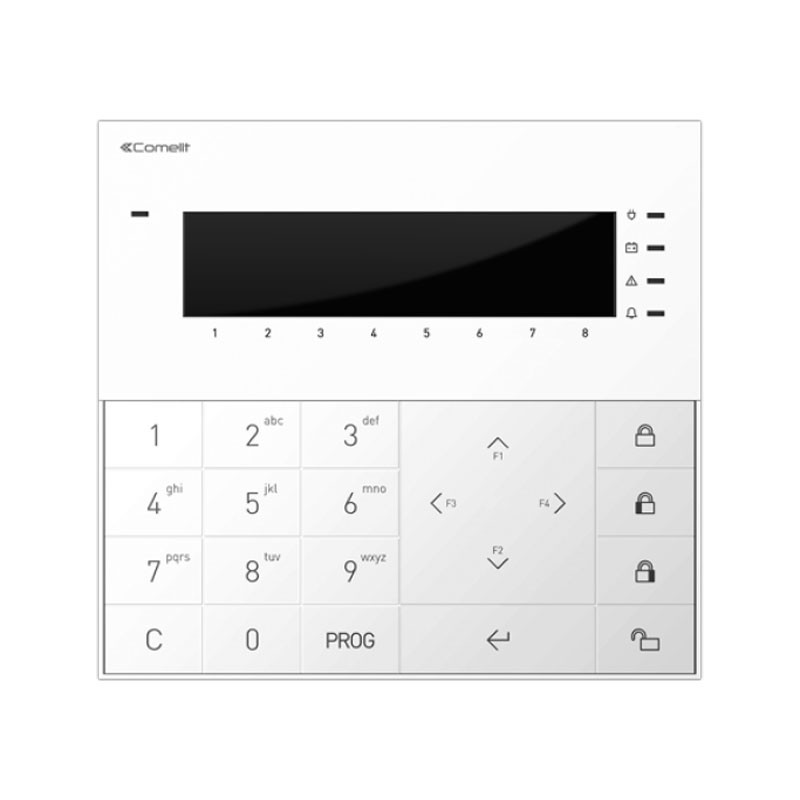

Comelit LCD keyboard for VEDO VEDOKP soft-touch control panels with alphanumeric LCD screen for management and programming of Vedo series alarm control panels. Equipped with: - 4 signalling LEDs (mains power presence, low battery, fault and alarm) - 2 inputs freely programmable as NC, NO, single, double, triple balanced and double inputs - 4 configurable function keys - tamper and anti-tear tamper. An on-board light sensor allows optimal management of the keypad backlighting. The device is also equipped with a buzzer for acoustic signalling of the various commands. 8-area screen printing. Size 137 x 127 x 24 mm.

Features:

• Alphanumeric LCD display type (2x16 characters).
• Keypad type Soft-touch, with micro-switch
• No. of keys 4, configurable
• No. of inputs (n°) 2
• Tamper Tamper/Tear Tamper
• Alarm activation Yes
• Vedo compatible control panels
• Internal buzzer Yes
• Brightness sensor Yes
• Areas screen-printed on keypad (no.) 8
• Type of bus connection RS485
• BUS termination On-board, enableable
• RS485 half-duplex ports (no.) 1
• Installation Wall-mounted, standard 3-module box 503/503E or similar
• Type Cover materials Plastic
• Product color White
• Operating temperature (°C) -10 to 40
• Height (mm) 127
• Width (mm) 137
• Depth (mm) 24
• Product weight (g) 260
• Supply voltage 10÷15
• Max. absorption (W) 1
• Maximum absorption (mA) 80
• Stand-by absorption (mA) 30

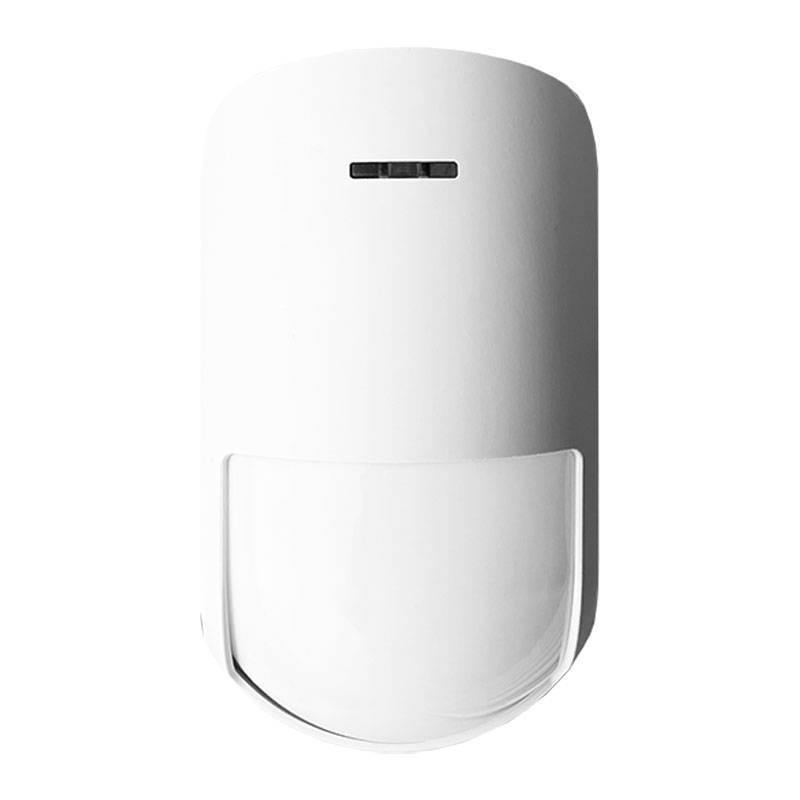

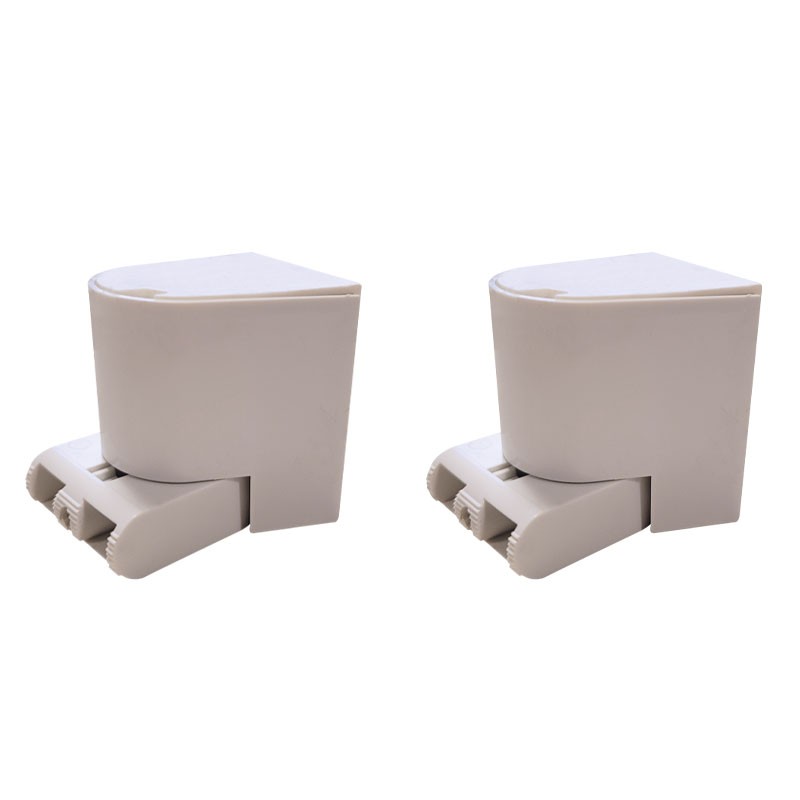

Dual technology PIR + K-band microwave detector, 12m range and 90° coverage angle with installation at a typical height of 2.1 metres. Selectable AND/OR/triple-knock function, digital signal analysis, solid state relay outputs. Three indication LEDs (alarm+pre-alarm, PIR, MW) which can be excluded. Independent PIR and MW sensitivity adjustment trimmers. PIR with selectable motion detection rate and animal immunity up to 12Kg. 9 to 18VDC power supply with reverse polarity protection, standby consumption 14mA@12VDC. Mounting height from 1.5m to 3m. ABS plastic housing in white RAL9003, Dimensions 119x66x46 mm. Optional INBRK bracket for wall or ceiling mounting. EN50131 Grade 2 certification.

• 12-meter range and 90-degree coverage angle
• Installation at a typical height of 2.1 meters
• Power supply from 9 to 18VDC
• Mounting height from 1.5 to 3 meters
• Dimensions: 119x66x46 mm



Features:

• Detection type Microwave 24Ghz K-band
• Infrared range (m) 12
• Microwave range 12m
• Coverage distance (m) 12
• Coverage angle 90°
• Infrared sensitivity adjustment Yes
• Microwave sensitivity adjustment Yes
• Microwave frequency 24GHz (K band)
• Sensor logic OR/AND/AND intelligent
• Led 3
• Type coating materials ABS
• Product color White
• Operating temperature (°C) -15 to 50
• Height (mm) 119
• Width (mm) 66
• Depth (mm) 46
• Product weight (g) 72
• Wall mounting Yes, with dedicated accessory
• Indoor use Yes
• Installation height (m) 1.5 ÷ 3.

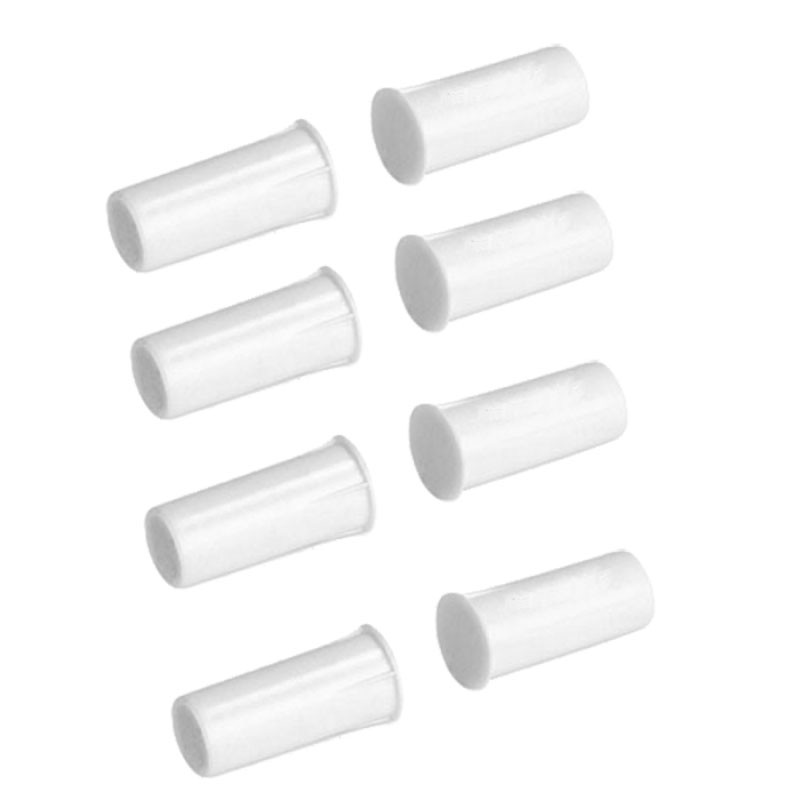

4 pcs. recessed magnetic cigarette contacts made of plastic, not suitable for mounting in metal fixtures. Colour white, dimensions: 21.5 x 10.5 x 9 mm.

Technical characteristics magnetic contact:

• Detection type Magnetic
• Standards EN EN50131-2-6 Grade 2
• Operating distance (mm) 20
• Type coating materials Plastic, ABS
• Colour White
• Operating temperature (°C) -20 to +80
• Dimensions: Height (mm) 10.5 - Diameter (mm) 10.5
• Flush mounting Yes
• Terminals 2 wires - 350 mm
• Degree of protection IP67
• Maximum contact current rating (mA) 500
• Contact type NC
• Rated voltage 100V
• Nominal power 10W
