Battery Li-ion Ajax 7.4V 10Ah 72h for Hub Fire fire control panel EN54
08T 127879
4823114073298

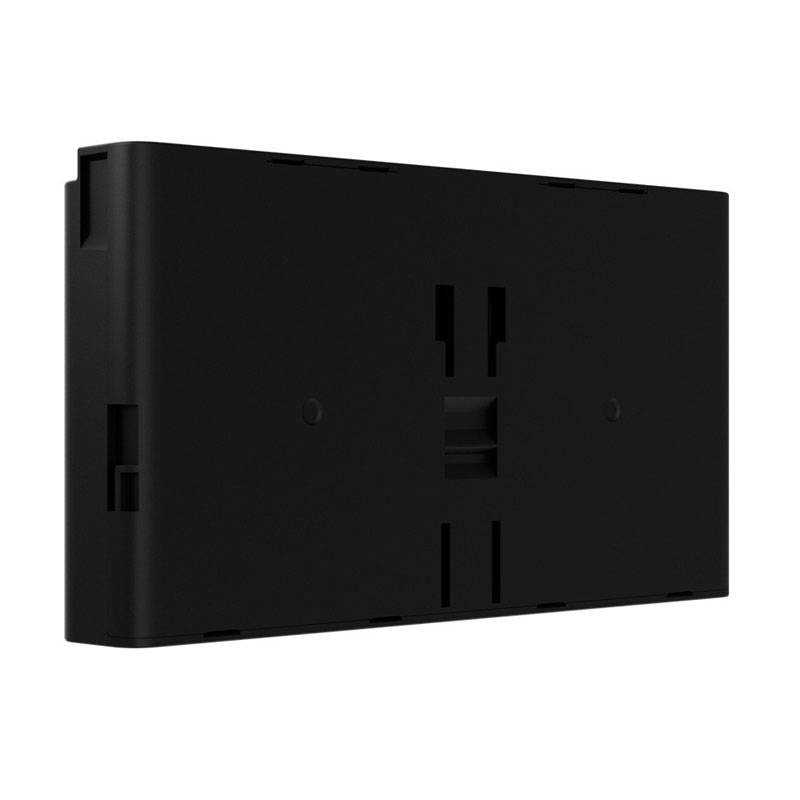

Battery Li-ion Ajax 7.4V 10Ah black colour, for Hub Fire EN54 fire control panels. Rechargeable and high capacity, it guarantees up to 72 hours of autonomy and compliance with EN 54-4 standards.
-
Nominal voltage: 7.4 V
-
Capacity: 10 Ah (rechargeable)
-
Autonomy up to 72 hours
-
Composed of 8 cells 18650 Li-ion
-
Compliant with EN 54-4 standard
-
Compatible with Hub Fire Jeweller and Fire ReX Jeweller
-
Ensures operational continuity in case of blackout
€130.20
Out of stock
Incoming
Ajax Li-ion Battery 7.4V 10Ah: reliable energy for fire safety
The rechargeable Ajax 7.4V 10Ah battery is designed to power the Hub Fire EN54 fire control panels, ensuring constant system operation even in the event of a main power supply interruption. Thanks to lithium-ion (Li-ion) technology, it offers high energy density and long operational life, guaranteeing up to 72 hours of autonomy for the fire detection and alarm system.
Consistent performance and maximum safety
Composed of 8 cells 18650 Li-ion, the Ajax battery ensures electrical stability, thermal safety, and long-term reliability. The cells are balanced and protected against overcharges, short circuits, and deep discharges, preserving performance even after numerous recharge cycles. Compatibility with EN54 Fire Hub Jeweller and Fire ReX Jeweller devices allows perfect integration into Ajax security systems, keeping communication modules, sensors, and alarm functions active in all operational conditions.
Compliance with EN 54-4 standards
The battery complies with EN 54-4 standards, which regulate power supply units for fire systems, ensuring the regulatory compliance required in civil and industrial contexts. This certification ensures that the alarm system maintains operational continuity even in emergency situations, such as network interruptions or electrical failures.
Easy installation and automatic charging
The Ajax battery is rechargeable and easily replaceable, designed to be quickly installed inside Ajax fire control panels. During normal operation, charging occurs automatically via the control panel board, always maintaining the optimal energy level and ensuring maximum readiness in case of emergency.
Technical characteristics
| Parameter | Value |
|---|---|
| Compatibility | |
| Compatible devices | EN54 Fire Hub Jeweller, EN54 Fire ReX Jeweller |
| Battery type | |
| Type | Rechargeable Li-ion battery |
| Number of cells | 8 × 18650 |
| Nominal voltage | 7.4 V |
| Capacity | 10 Ah |
| Power supply | |
| Maximum load current | 3.2 A |
| Battery voltage at end of life | 6 V |
| Suggestions | |
| Use | Use the battery only with compatible devices |
| Environment | Designed exclusively for indoor use |
| Enclosure | |
| Dimensions (L × H × D) | 166 × 87 × 23 mm |
| Weight | 443 g |
| Operating temperature | from −10 °C to +40 °C |
| Maximum allowable humidity | up to 75% (without condensation) |
| Protection class | IP20 |
| Colour | Black |
There are no reviews
Data sheet
- Type: Batteries
- System: Wireless
