Vortice AIR Door AD1500 Air door with standard remote control 65197
VOR 0000065197
8010300651972

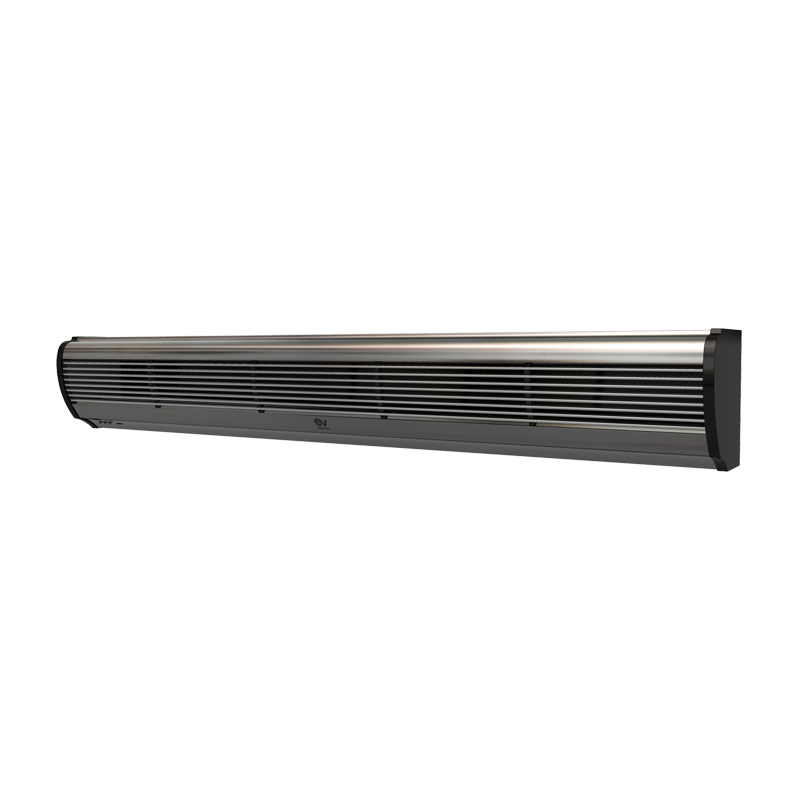

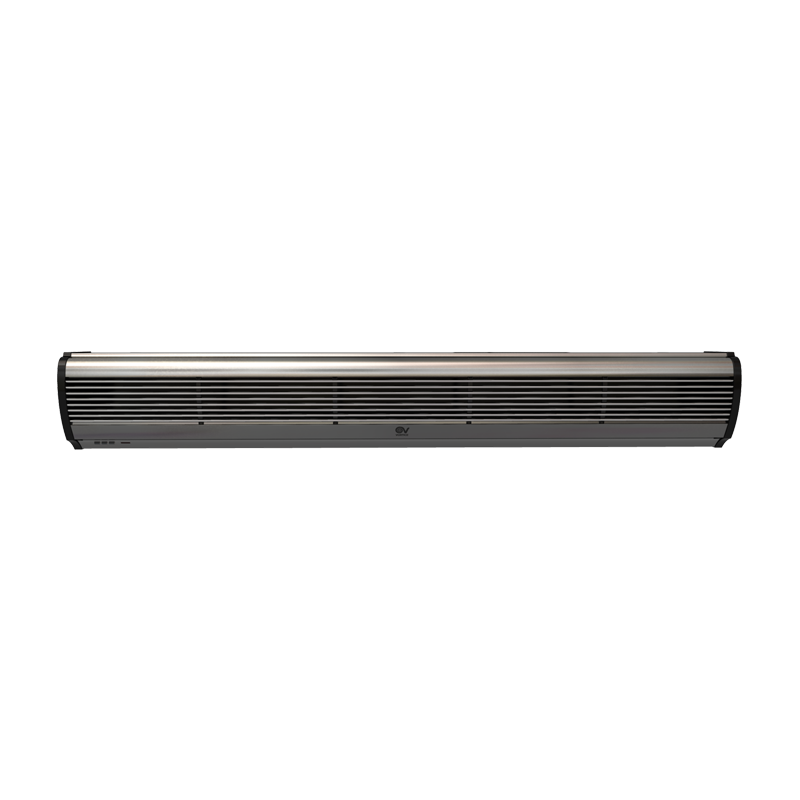

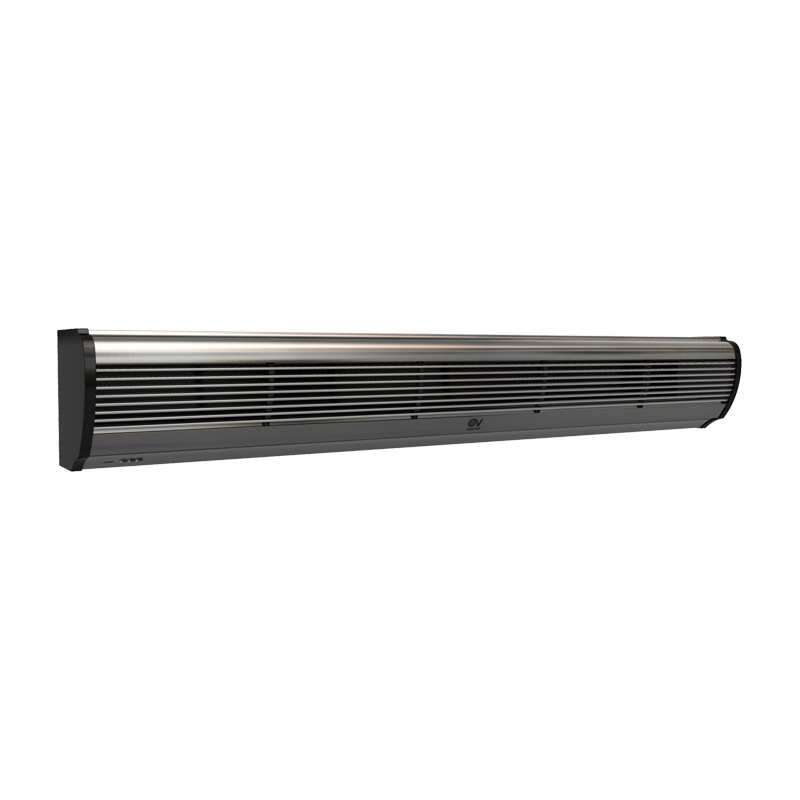

Vortice AIR door AD1500 air curtain with standard remote control 65197, width 150 cm.
![Barrier d air Vortex AIR door AD1500 with remote serial 65197 Barrier d air Vortex AIR door AD1500 with remote serial 65197](https://www.elettronew.com/15979-large_default/barrier-d-air-vortex-air-door-ad1500-with-remote-serial-65197.jpg)
Vortice AIR Door AD1500 Air door with standard remote control 65197
€341.95
€341.95
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 6
Advantages:
- Satin silver-coloured aluminium front panel with air intake grille consisting of 9 horizontal polished aluminium elements. The black sheet-metal rear body acts as a support for fixing the internal components. The black side panels are made of ABS thermoplastic resin.
- Nominal product width: 1500 mm
- Neutral version (room temperature air) and 2 operating speeds.
- Twin-shaft AC motor, thermally protected
- Minimum flow rate: 2000 m3/h
- Maximum flow rate: 2500 m3/h
- 2 tangential fans, made of black thermoplastic resin (SAN), ultrasonically welded, direct air through a longitudinal opening in the lower part of the machine.
- IR remote control, with a button for switching the product on/off and for speed selection; the same controls are located on the front panel of the product (3 buttons)
- Power cable with schuko plug
- Can be combined with standard 'door sensors'
- Adjustable flaps to direct the air jet
Technical specifications:
- Max. current consumption (A) 1.00
- Frequency (Hz) 50
- Number of speeds 2
- Weight (Kg) 15,5
- Max. power input at max speed (W) 230
- Max. power input at min speed (W) 180
- Max. ambient temperature for continuous operation (°C) 30
- Voltage (V) 230
- Max. flow rate at max. speed (l/s) 694
- Max. flow rate at max. speed (m³/h) 2500
- Max. flow rate at min. speed (l/s) 555
- Max. flow rate at min. speed (m³/h) 2000
- Sound pressure level Lp [dB (A)] 2m - max. speed 59
- Sound pressure Lp [dB (A)] 2m - min speed 57 RPM max 1450 RPM min 1400
- Air speed at max. speed (m/s) 11
- Air speed at min speed (m/s) 9

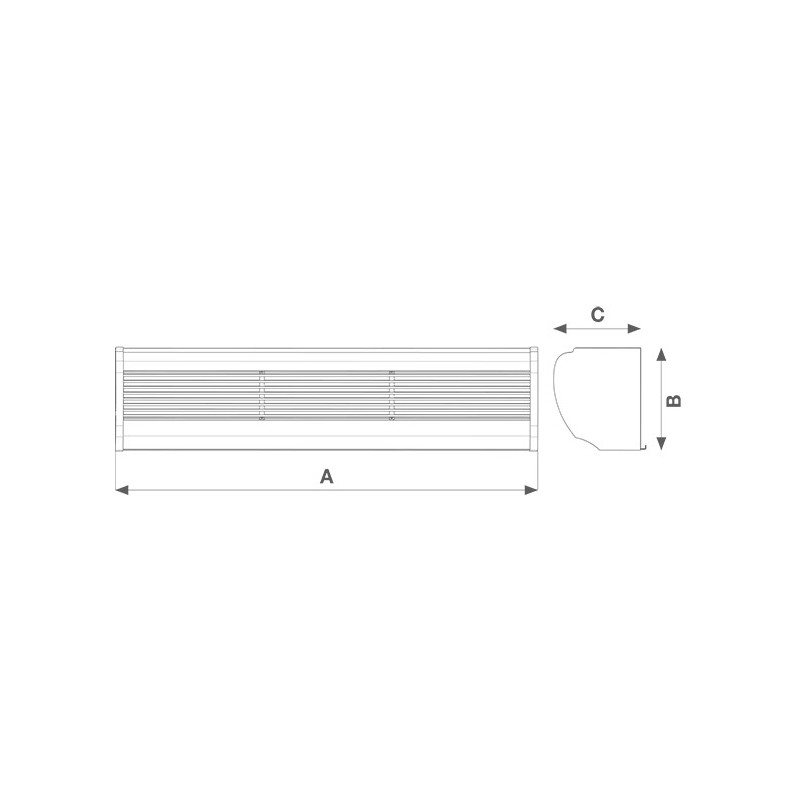

- Dimensions: A (mm) 1500- B (mm) 220- C (mm) 190
Data sheet
- Type:
- Air curtains
- Power:
- 230W
- Air flow:
- 2500 m3/h
