Olimpia Splendid UNICO EDGE Air conditioner without outdoor unit 3.0kW R32 02115
SPL 02115
8021183021158
Air conditioner running without Outdoor Unit Olimpia Splendid UNICO EDGE:
- Inverter
- Max power 3,0kW
- Double Class A in Heating / Cooling
- Top or bottom wall installation
- With new integrated R32 gas
- 1 Multifunctional remote control
- 24h timer
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,946.16
Out of stock
Air conditioners of the same series
Advantages:
- HEAT PUMP: Heat pump air conditioner. Thanks to this function it is possible to heat and replace the traditional heating in the intermediate seasons or enhance it.
- INVERTER SYSTEM: The motor speed is constantly regulated according to the set temperature, to optimize energy consumption.
- New Italian Design: Designed by the Italian studio Ercoli + Garlandini, it stands out for its soft lines, with a retro taste, combined with a texture with a strong personality.
- Low GWP gas: it uses the R32 refrigerant, characterized by a greenhouse effect reduced by almost 70% (compared to R410A)
- Wide flap: for homogeneous diffusion of the air in the environment Multi-filtering system composed of electrostatic filter (with anti-dust function) and active carbon filter (effective against bad odours).
FUNCTIONS:
- Economy function: allows energy saving, automatically optimizing the performance of the machine
- Ventilation only function
- Dehumidification only function
- Auto function: modulates the operating parameters in relation to the room temperature
- Sleep function: gradually increases the set temperature and ensures reduced noise for a better night comfort.
Features:
- Cooling capacity (min/max) 1,9/3,0 kW
- Heating capacity (min/max) 1.9/3.1 kW
- Rated cooling capacity 2.7 kW
- Rated heating capacity 2.4 kW
- Rated input power for cooling 1.0 kW
- Rated input power for cooling 5A
- Rated input power for heating PCOP 0.8 kW
- Rated input power for heating 3.8 A
- Rated energy efficiency index EERd 2.6
- Rated coefficient of performance COPd 3,1
- Energy efficiency class cooling A
- Energy efficiency class in heating mode A
- Supply voltage V-F-Hz 230-1-50
- Power consumption in cooling mode (min/max) 0.7/1.4 kW
- Power consumption in cooling mode (min/max) 3.4/6.6 A
- Power input in heating mode (min/max) 0.6/1.1 kW
- Power consumption in heating mode (min/max) 3.1/5.8 A
- Dehumidification capacity 1,1 l/h
- Room air flow in cooling mode (max/med/min) 490 / 430 / 360 m³/h
- Room air flow in heating mode (max/med/min) 490 / 430 / 360 m³/h
- Outside air flow rate for cooling (max/min) 500 / 340 m³/h
- Outside air flow rate for heating (max/min) 500 / 340 m³/h
- Number of indoor ventilation speeds 3
- Number of external ventilation speeds 6
- Wall hole diameter (Machine supplied with grilles for wall holes 202 mm) 162 / 202 mm

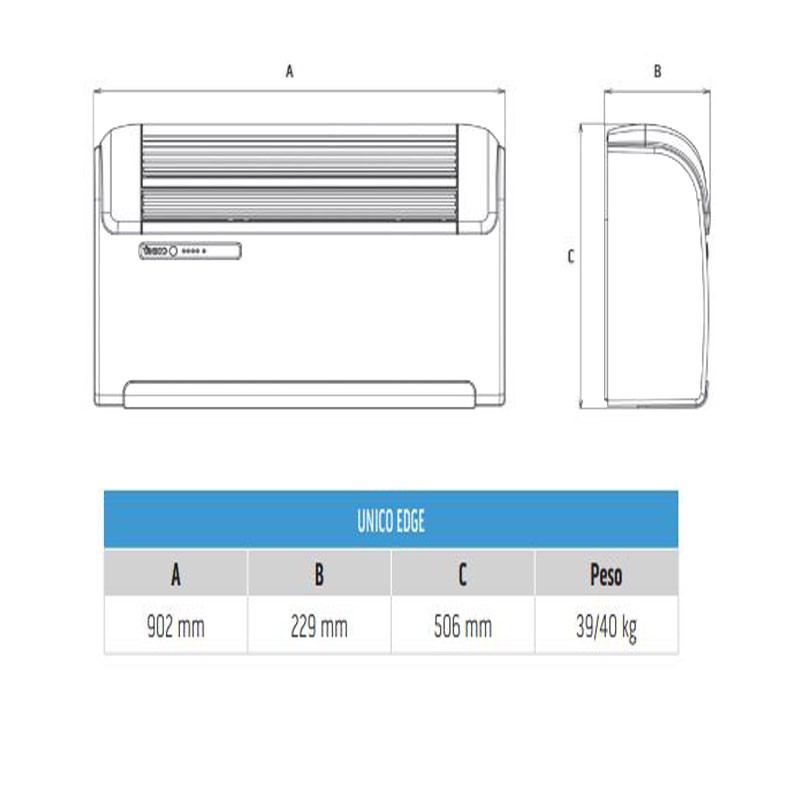

- Dimensions (W x H x D) (without packaging) 902 x 506 x 229 mm
- Weight 40 Kg
- Internal sound pressure level (Min Max) 33-43 db(A)
- Internal sound power level (EN 12102) 58 dB(A)
- Enclosure protection degree IP20
- Refrigerant gas R32 (Hermetically sealed equipment containing fluorinated GAS with GWP equivalent 675)
- Global warming potential 675 kgCO2 eq
- Refrigerant gas charge 0.42 kg
- Max working pressure 4.28 MPa
- Power supply cable (No. of poles x section m²) 3 x 1.5
Limiting conditions of operation
Temperature Indoor environment:
- Maximum operating temperatures in cooling mode DB 35°C - WB 24°C
- Minimum operating temperature in cooling mode DB 18°C
- Maximum operating temperature in heating mode DB 27°C
External ambient temperature
- Maximum operating temperatures in cooling mode DB 43°C - WB 32°C
- Maximum operating temperature during heating DB 24°C - WB 18°C
- Minimum operating temperature during heating DB -15°C
Data sheet
- Air conditioners: Without outdoor unit
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- Room Size: 35m²
- Energy class: A
- Series: Unico
