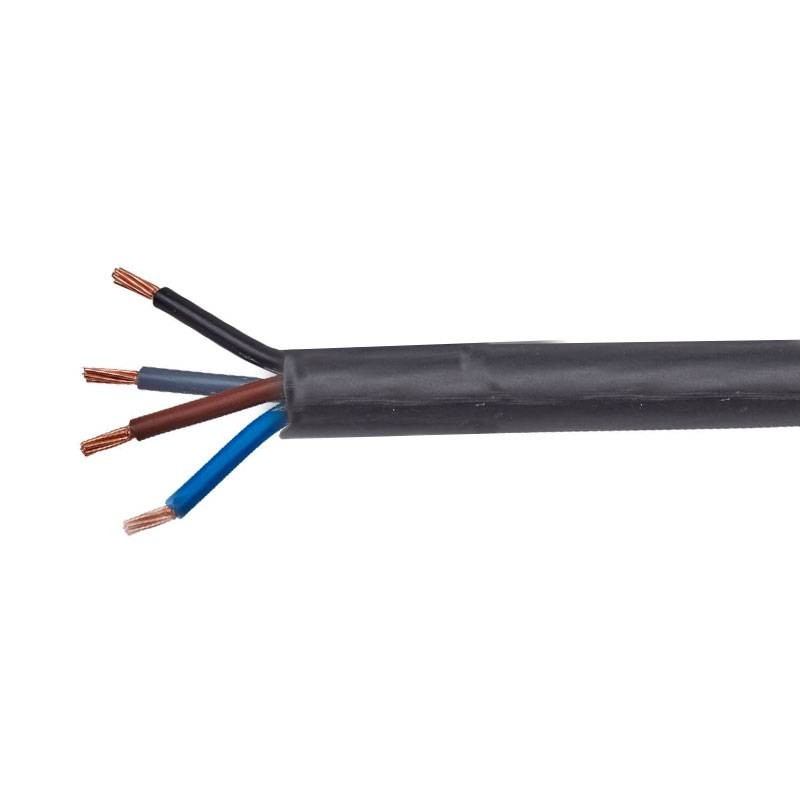

Multipole power cable FG18OM16 4x16 sq. mm 0.6/1 kV Black

Cavi
9X9 FG18OM164X16

Multi-core flexible FG18OM16 0.6/1 kV power cable, designed to ensure maximum safety in fixed electrical installations, even in critical environmental conditions. Due to its low-fume and halogen-free (LS0H) construction, it is the ideal choice for high-traffic public environments such as schools, offices, theaters and shopping malls, with the following characteristics:

  • Section: 4x16 sq mm

  • Conductor diameter: 5 mm

  • Insulation thickness: 1 mm

  • Sheath thickness: 2 mm

  • Outer diameter: 24.7 mm

  • Max. electrical resistance at 20 degrees: 1.21 ohm/km

  • Flow rate in pipe in air (30 degrees): 80 A

  • Flow rate in buried pipe (20 degrees): 72 A

  • Insulation: G18 elastomeric rubber resistant up to 90 degrees

  • Outer sheath: M16 LS0H with low smoke and toxic gas emission

  • Conductor: flexible annealed red copper class 5

The selling price is intended per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Multipole power cable FG18OM16 4x16 sq. mm 0.6/1 kV Black
€12.39
€12.39

€12.39
Tax included
Calculate shipping cost
Items Available: 2440
Further availability of the manufacturer
€12.39

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

High fire safety power cable

Designed for applications where fire safety is a priority. Thanks to the LS0H compound, the cable will not emit opaque fumes, toxic or corrosive gases in the event of a fire, facilitating evacuation and preserving facilities.

Installation versatility

It is suitable for laying:

  • In indoor or outdoor environments, even in the presence of humidity

  • On masonry or metal structures

  • In-ground, either direct or protected in pipe

  • In pipe in air, maintaining excellent mechanical strength

Recommended applications

Ideal for electrical installations in:

  • Offices and administrative offices

  • Schools and educational institutions

  • Hospitals, clinics, nursing homes

  • Cinemas, theaters, convention halls

  • Supermarkets and shopping malls

  • Industrial environments with audiences

Technical Specifications Cable FG18OM16

Rated voltage Uo/U 0.6/1 kV
Maximum operating temperature 90°C
Maximum short-circuit temperature 250°C
Min operating temperature -15°C
Minimum laying temperature -5°C
Maximum tensile stress 50 N/mm²
Minimum bending radius 4 × Outer Ø
Conductor diameter 5 mm
Insulation thickness 1 mm
Sheath thickness 2 mm
Outer diameter 24.7 mm
Max. electrical resistance at 20°C 1.21 Ω/km
Flow rate in tube in air (30°C) 80 A
Flow rate in buried pipe (20°C) 72 A
Reaction to fire B2ca-s1a,d1,a1
Reference standards CEI 20-67, HD 308

There are no reviews

Data sheet

Colour:
Black
Cross-Section:
16mmq
With yellow/green:
No
Number of cables:
4
