Fischer universal bracket for suspended sanitaryware LC PLUS bars M12 00501026
FIS 00501026
8001132010266

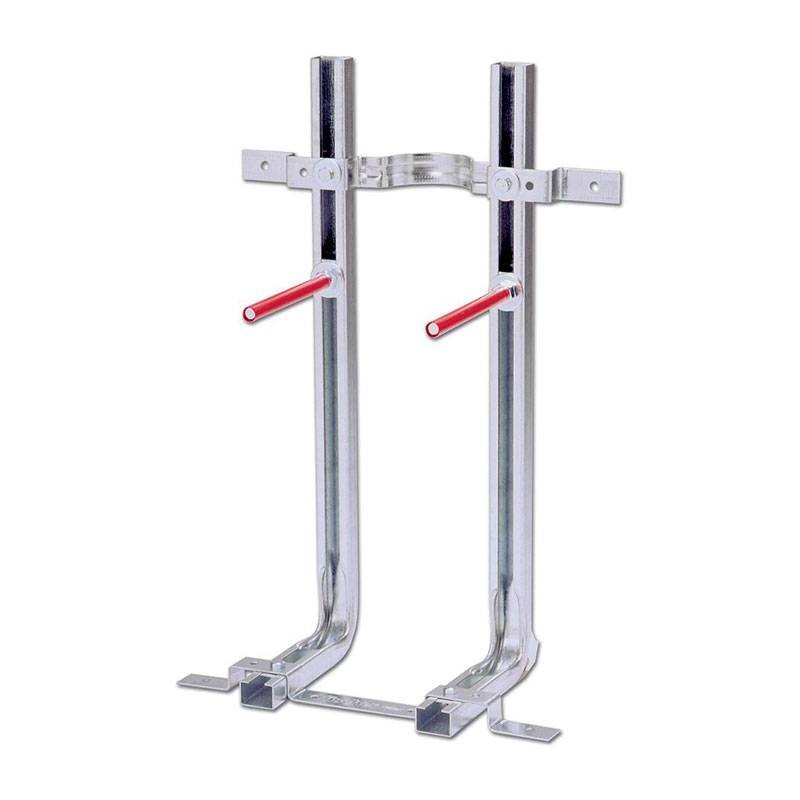

Fischer universal bracket for suspended sanitary fixtures LC PLUS, M12 bars 180 mm long.
Complete kit with BUAK eccentric bushings, M12 bars and nuts.
€22.10
Items Available: 13
: 9
Advantages:
- LC plus with shaped crossbar for flush cistern outlet
- L plus with straight crosspiece for bidet or toilet use with lateral cistern placement
- Complete kit with BUAK eccentric bushings, M12 bars and nuts
- Pre-assembled system with 180 mm center distance and with possibility of quick adjustment up to 230 mm
- M12 bars 180 mm long
- Tested to 400 kg according to UNI EN 997 and UNI EN 14528 standards
- Application with any recessed box
- Floor base without protruding screws
Assembly:
- Insert the M12 bars with the red protection
- Fasten the bracket to the required spacing

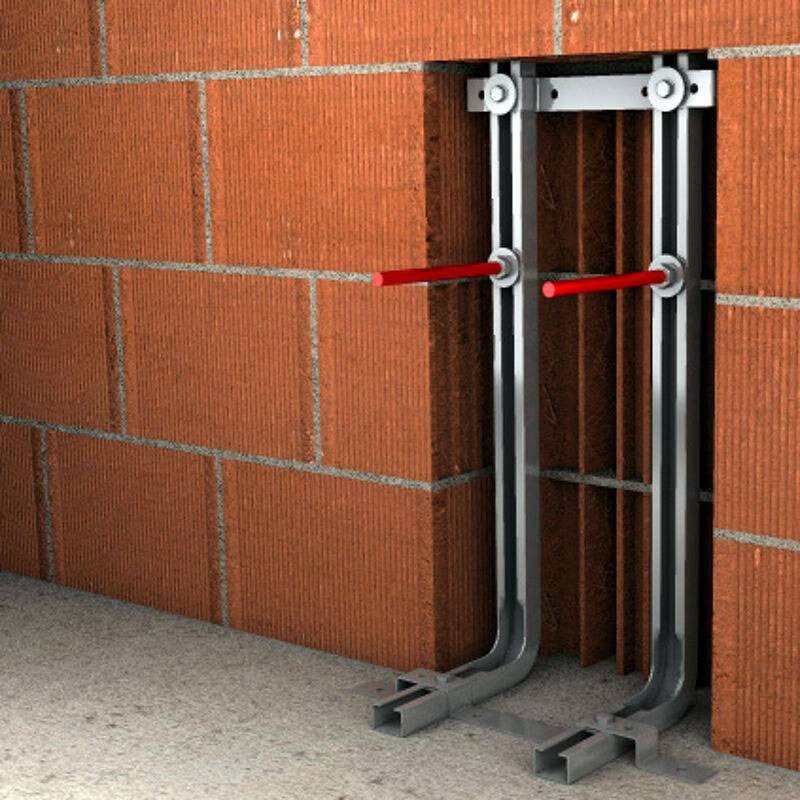

- Install in the wall and reinforce
- Remove the red protection, install the sanitary fixture and secure the nuts by covering with BUAK bushings
There are no reviews
Data sheet
- Type: Brackets for Sanitary installation
