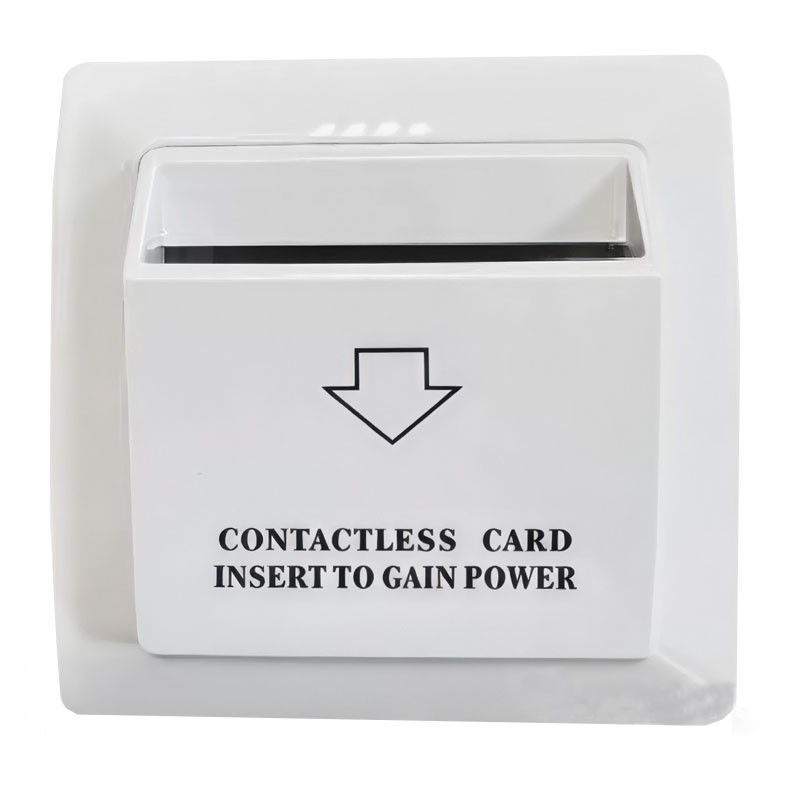

CDVI Badge Holder Pocket 125kHz Automatic Current Activation PS20LL
CDV PS20LL
CDVI Badge Holder Pocket for energy management in rooms. It detects card frequency (not code) and handles loads up to 6.6 kW, with the following features:
-
Badge reading: At 125 kHz (frequency only, not code)
-
Activation: Automatic current activation with badge insertion
-
Maximum load supported: 6.6 kW - 30A - 220Vac
-
Post badge removal shutdown timer: 15 seconds
-
Low power consumption: Only 1 watt
-
Ideal for: Hospitality facilities: hotels, B&Bs, residences
The contactor is not included in the package.
This product cannot be mounted on the 503 box (there is already a standard square pre-assembled box).
€56.27
Items Available: 25
: 14
Frequently bought together
Intelligent energy management in rooms and controlled environments
The CDVI badge holder pocket is a device designed to optimize energy consumption within hospitality facilities such as hotels and bed & breakfasts by ensuring that electricity is turned on only when a valid badge is inserted. Unlike more advanced RFID readers, the PS20LL detects only the 125 kHz card frequency, avoiding management costs associated with associating specific badges.
Up to 6.6 kW load and automatic shutdown
The pocket can handle a maximum load of 30A at 220V, equivalent to 6.6 kW, allowing air conditioners, lights and outlets to be powered simultaneously. Upon removal of the badge, power is cut off after 15 seconds, providing sufficient time to safely leave the room.
Important note: The device does not include the contactor, which is needed to drive high loads.
Compact, installation-ready design
Small size and sleek design allow discreet integration within the room. The product comes with a standard pre-assembled box and is not compatible with 503 flush-mount boxes.
Recommended applications
-
Hotels and B&Bs: automatic power supply management in rooms
-
Guesthouses, residences and tourist facilities
-
Access control in environments where you want to activate devices only in the presence of the user
Technical Characteristics CDVI badge holder pocket
| Technology | 125 kHz (frequency detection only) |
| Badge compatibility | Frequency only - does not recognize individual codes |
| Maximum load supported | 6.6 kW - 30A - 220Vac |
| Maximum current | 30A |
| Post badge removal shutdown time | 15 seconds |
| Own consumption | 1 W |
| LED status indicator | Off with badge inserted |
| Contactor | Not included |
| Box compatibility | Not compatible with box 503 |
| Box included | Yes, pre-assembled (square) |

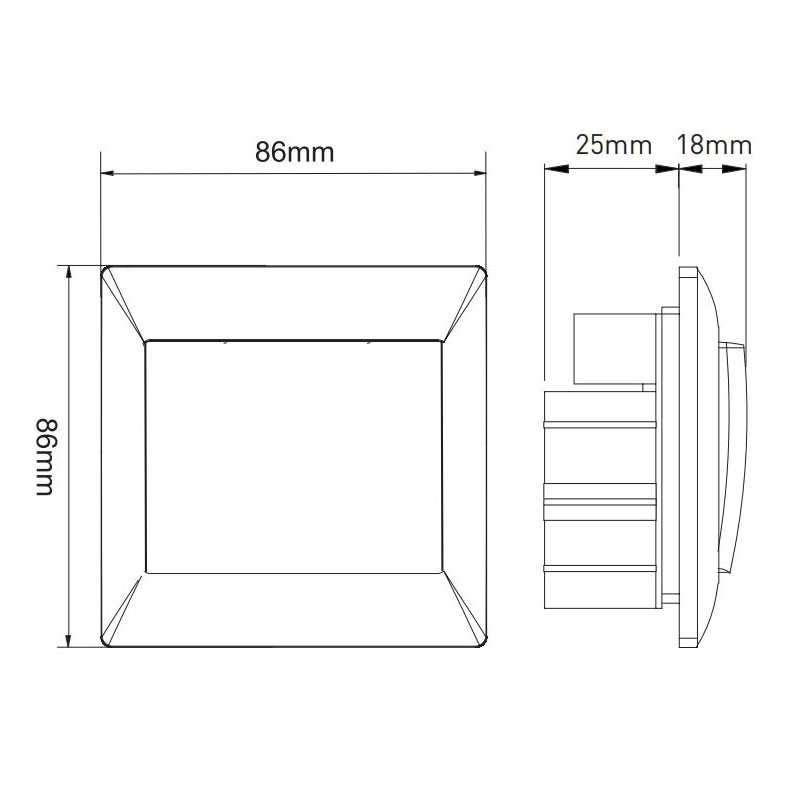

| Dimensions | 86×86×25 mm |
| Recommended use | Energy control in rooms and restricted areas |
There are no reviews
Data sheet
- Type: Badge holders
