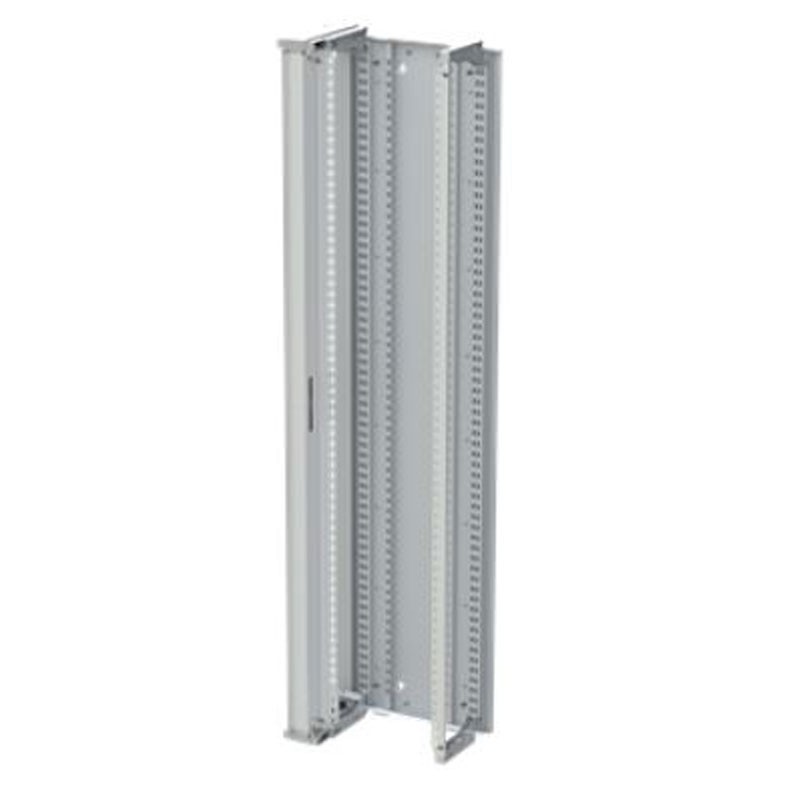

Abb 800A IP43 1800x300mm floor cable compartment panel Q843E418
ABB Q843E418
5411815219399
Basic cable compartment cabinet/extension (without door) floor-standing Abb System pro E Energy Combi series up to 800 Amps with the following features
- Material: Steel
- Type of mounting: Wall-mounted, for indoor installation
- Form of protection I (earthed)
- RAL number: RAL 7035 - Light grey
- Colour: Grey
- Number of batteries: 0
- The door (to be purchased separately) can be mounted on the left or right - Door opening 135 degrees
- Top and bottom of compartment must be purchased separately
- Sheet steel back plate
- Prepared for side-by-side extension
- Cable entry via large flange Cable entry, dimensions in mm (H x W x D) 1800 x 400 (384) x 250, Mod. No. DIN 144 (H=150 mm)
![](https://www.elettronew.com/72249-large_default/abb-800a-ip43-1800x300mm-floor-cable-compartment-panel-vc1800.jpg)
Abb 800A IP43 1800x300mm floor cable compartment panel Q843E418
€545.84
€545.84
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 5
Other technical features:
- Net product width: 384 mm
- Powder-coated RAL 7035
- Sheet steel material
- Net product height: 1849 mm
- Net product depth/length: 250 mm
- Net product weight: 23.819 kg
- Degree of protection: IP43 (with door) IP30, without door
- Impact resistance grades: IK08 for housing, IK07 for glass door and door leaf
- RoHS status: following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
- Reference standards: IEC 61439- 1, IEC 61439-2, IEC 61439-3, IEC62208
Data sheet
- Type:
- Electric cabinets
- Degree of protection:
- IP43
