Abb three-family video intercom kit with 4.3" hands-free monitor
KIT ABBVIDEO3
Abb Welcome three-family video intercom kit consisting of:
- 1 650mA mini video starter kit M20611 (Video module, audio module, power supply) WLK205X
- 1 Grey flush-mounting box 2x1 41382F-H - WLS802G
- 1 Aluminum frame 2x1 41392CF-A WLF302A

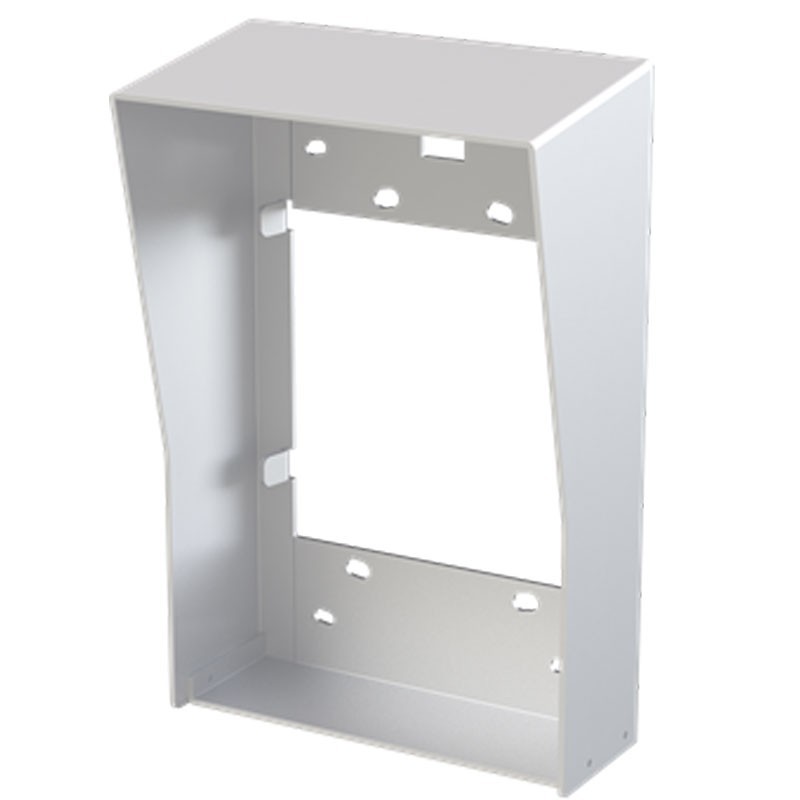

- 1 Rain visor 2x1 wall 41022WC-A WLV202X
- 3 Abb color video intercom monitor 4.3 hands-free BASIC single-family code WLI304B
This Kit can be expandable up to 4 users by adding another video intercom to the kit (wli304b/wli202b), the handset can be split from 2 to 4 buttons.
€959.94
Items Available: 3
: 2
Frequently bought together
Technical specifications of kit parts:
Start Abb Video Mini video intercom kit code WLK205X Composed of:
- 1 Video module code WLM300X
- 1 WLM102A audio module with 2/4 buttons
- 1 Controller power supply 650 mA
This StarterKit can manage up to 4 different utilities (Four-family systems).
M251021C-02 Video Module code WLM300X:
- Video module with adjustable camera orientation, anti-fog heater and IR for night images. Features an input for connecting an additional analog camera.
- Operating voltage: 28 V
- Input voltage type: DC
- Housing material: plastic
Audio Module M251023A-A-02 CODE WLM102A:
- Aluminum audio module with buttons that can be doubled from 2 to 4 and status LEDs. Features one live contact (e.g., for electric lock) and one volt-free contact (NO or NC, e.g., for automatic gate), with input for connecting a local door opener button that controls the priority between the two. Closing/opening time and on-call volume can be adjusted. Allows detection of the closing state of a door by connection of an NC contact
- Operating voltage: 28 V
- Type of input voltage: DC
- Number of buttons: 2
- Casing material: plastic

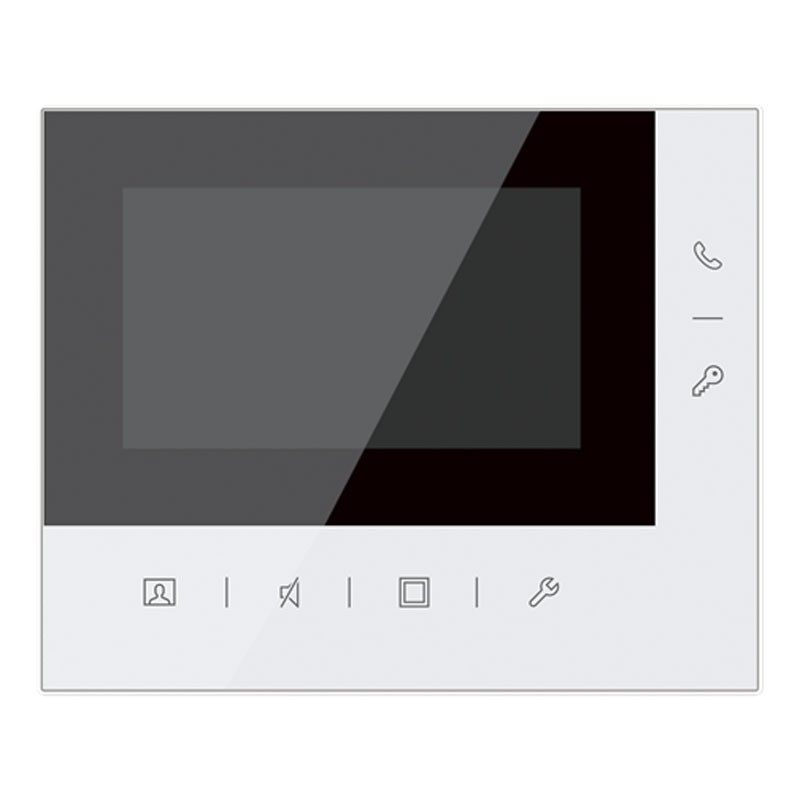

Monitor for Abb video door phone color 4.3 hands-free BASIC single-family WLI304B:
Indoor video door phone monitor Abb model M22481-W BASIC hands-free, with the following features:
- Operating voltage range 20-30V
- Standby current 24 V, 6 mA
- Operating current 24 V, 150 mA 24 V ?, 200 mA
- Display size 4.3 inches in color
- Display resolution 480 x 272 pixels
- Single-conductor terminals 2 x 0.28 mm2 ...2 x 0.75 mm2
- Fine-core terminals 2 x 0.28 mm2 ...2 x 0.75 mm2
- Operating temperature 5 °C+45 °C
- Storage temperature -20 °C+60 °C
- Size (WxHxL) 152 x 124 x 22.6 mm
- Color white
- Plastic material
Power Supply Mini Controller for Video Door Entry Abb M2301-101 WLD103X:
Controller Mini power supply for video door phone system Abb M2301-101, 4 modules, 650mA.
The switch allows you to select ALL ON mode (all indoor stations in an apartment ring and show the image from the outdoor station, if someone has buzzed) or ONE ON mode (only the MASTER indoor station rings and shows the image, the others ring only.
NOTE: The apartment station that answers the call will see the image, even if it is not the MASTER).
The ONE ON mode has been optimized from the previous model so that a single power supply can support a larger number of indoor stations.
Features:
- Current type: DC
- Input voltage (Uin): 230 V
- Output voltage (Uout): Nominal Value 1 20 V
- Maximum output current (Iout): 650 mA
- Frequency (f): 50 Hz
- Degree of protection: IP20
- Dimensions: Product width: 0.65 m - Product height: 0.9 m - Product depth: 0.72 m
- Product net weight: 0.212 kg
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Image memory
- System: 2-Wire
Intercom function
Three-family house
