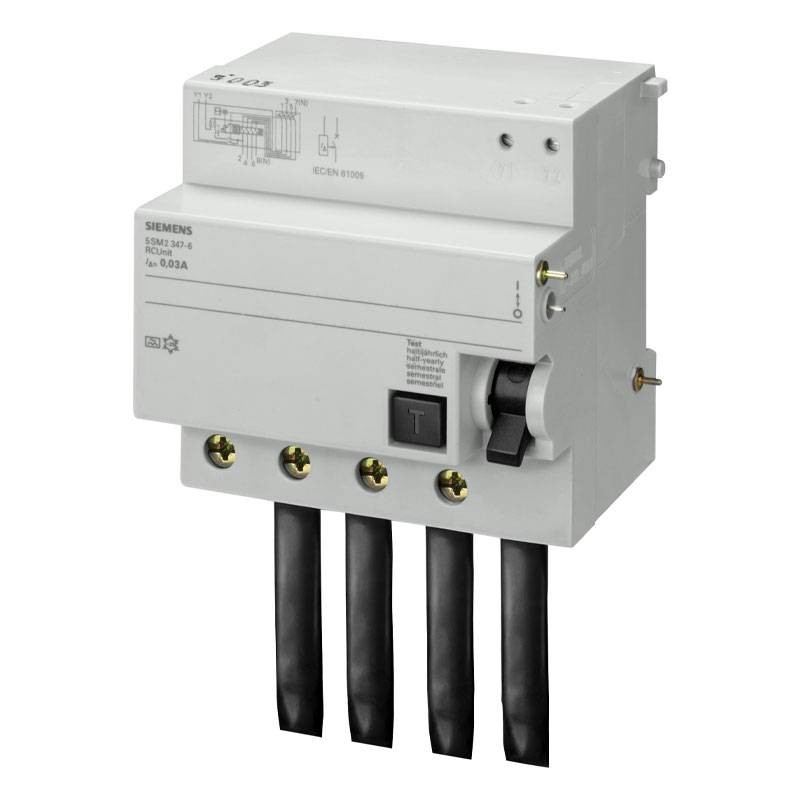

Siemens Earth Leakage add-on Block for switches 5SP 100A 4P 300 mA 5SM26476
SIE 5SM26476
4001869059167
Siemens Earth Leakage add-on Block is a protection device designed to ensure safety and efficiency in electrical installations by detecting ground faults with a sensitivity of 300mA. Ideal for advanced industrial and residential installations, with the following features:
-
Rated current: 100Amps
-
Number of poles: 4
-
Rated fault current: 300mA
-
Operating voltage: 400V AC
-
Differential type: AC
-
Number of modules: 5
-
Compatible with 5SP4 thermal-magnetic circuit breakers
€150.94
Items Available: 37
: 9
Frequently bought together
Siemens Earth Leakage add-on Block Safe, Robust and Easy to Install
Effective protection for electrical systems
The Earth Leakage add-on Block provides excellent protection from current leakage and ground faults, ensuring quick and reliable intervention in case of faults in the electrical system.
Robust structure and safety standards
With an overvoltage category III and a pollution degree 2, the device offers high resistance to external agents, maintaining maximum efficiency even in harsh environments.
Easy DIN-rail installation
DIN rail mounting (REG) and a width of 5 DIN modules enable quick and easy installation in electrical panels, ensuring compatibility with various system configurations.
Applications and uses of the Differential Block
-
Protection from current leakage in industrial and civil installations
-
Advanced safety for electrical panels
-
Installation in systems with a voltage of 400V AC
Technical Characteristics
General
| Feature | Value |
|---|---|
| Compatibility | For 5SP4 |
| Number of poles | 4 |
| Overvoltage category | III |
| Pollution degree | 2 |
| Voltage type of operating voltage | AC |
Electrical Performance
| Characteristic | Value |
|---|---|
| Insulation voltage (Ui) rated value | 460 V |
| Fault current per trip rated value | 300 mA |
| Impulse withstand current rated value | 1 kA |
| IP degree of protection | IP20 |
| Hot operation for each pole | 5 W |
Connections and Mounting
| Feature | Value |
|---|---|
| Connectable conductor cross-section (solid wire) | 6/50 mm² |
| Connectable conductor cross section (multiwire) | 6/50 mm² |
| Tightening torque with screw terminals | 2.5/3 N.m |
| Type of fixing | DIN rail (REG) |

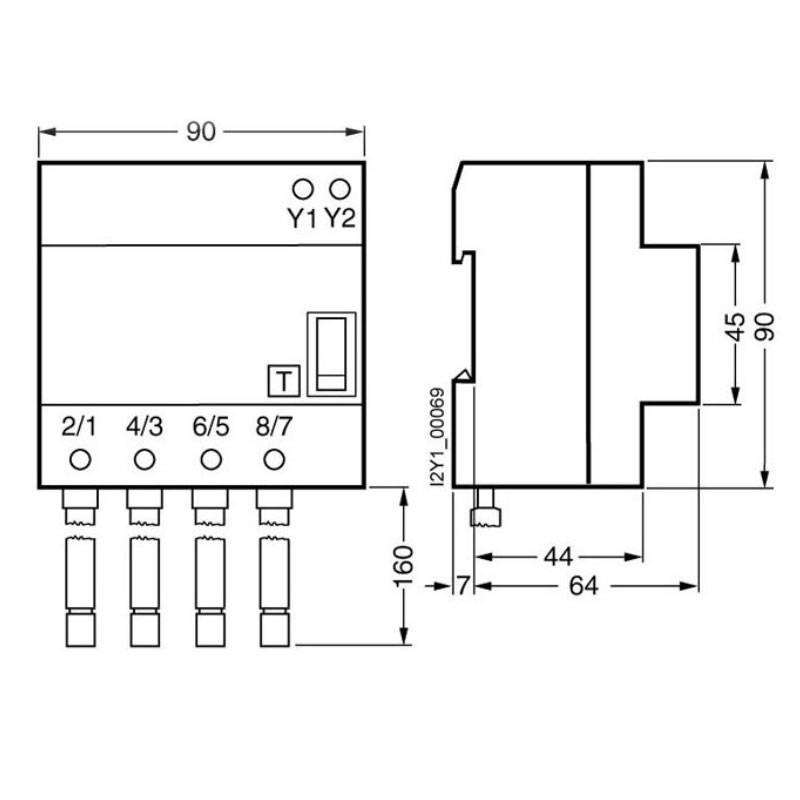

Dimensions
| Feature | Value |
|---|---|
| Height | 90 mm |
| Width | 124 mm |
| Depth | 70 mm |
| Recessed depth | 70 mm |
| Number of width modular units | 5 |
Environmental Conditions
| Feature | Value |
|---|---|
| Ambient temperature during operation | -25/+45 degrees |
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 5
- Poles: 4P
- RCD Type: AC
- Differential current : 0.3A
- Amps: 100A
- Circuit Protections: Earth Leakage add-on Blocks
