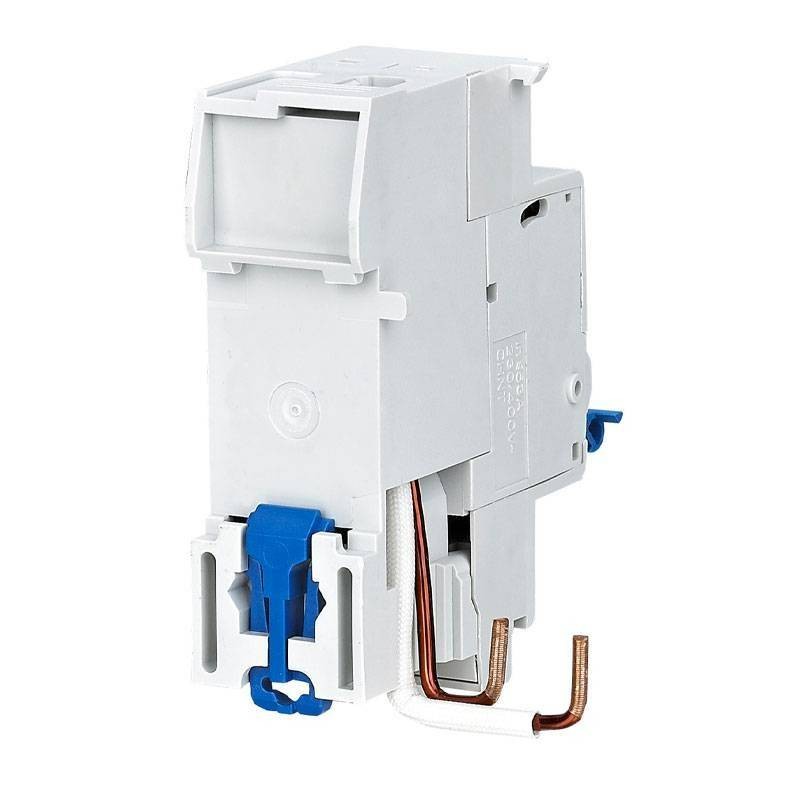

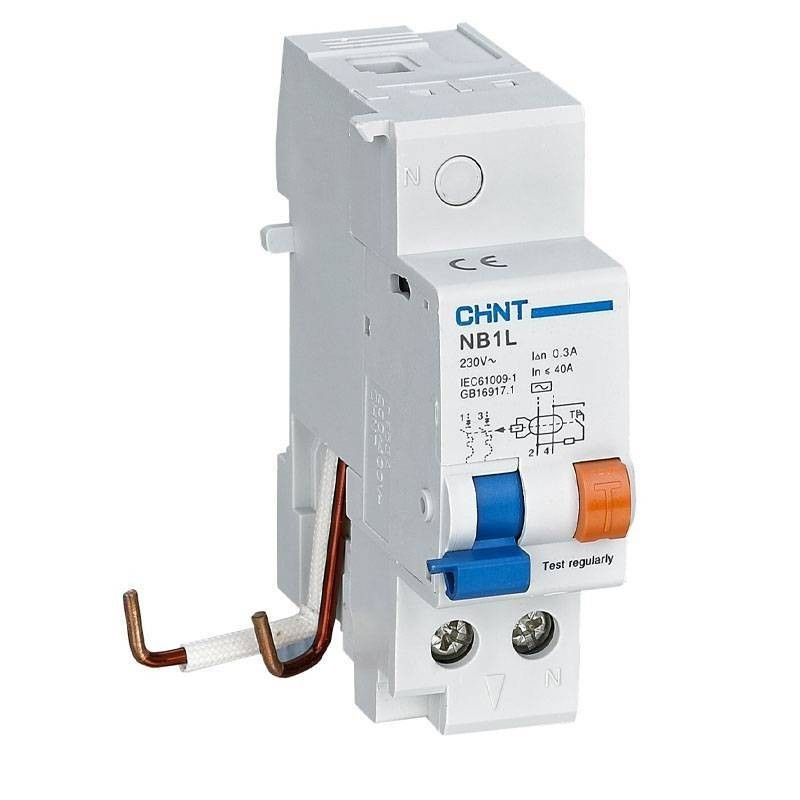

Chint Earth Leakage add-on Block NB1L-63 63A 300MA Type AS 2P 2 Modules 51631
CHT 51631
8058776750027
Chint NB1L-63 63A Earth Leakage add-on Block with the following characteristics:
- Number of poles: 2P
- Rated current: 63A
- Type of differential AS
- Rated residual current 300 mA
- Rated voltage: 230 Vac
- Number of modules: 2 Modules
- Degree of protection: IP20
Can be combined with NB1-63 and NB1-63H 2P series circuit breakers up to 63A.
Chint Earth Leakage add-on Block NB1L-63 63A 300MA Type AS 2P 2 Modules 51631
€110.32
€110.32
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Frequently bought together
Earth Leakage add-on Blocks are mechanically designed to prevent mismating between the block and the circuit breaker: the rating of the block must always be equal to or greater than that of the circuit breaker. The plastic clamp on the side allows faster mounting of the block on the circuit breaker, and a push-button prevents possible tripping.
It is used to protect human health in the event of ground fault (electrical leakage) or phase-to-ground electrocution, thus also providing protection toward macro electrical shock, both direct and indirect, on exposed persons.
The AS type provides greater immunity from electrical interference and polluted or corrosive environments.
Features:
- Reference standard: IEC/EN 61009-1
- Number of Poles: 2P
- Rated current: 63 A
- Differential characteristic: AS
- Rated voltage: 230 Vac
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Uimp Impulse Voltage: 6 kV
- Power Dissipation: 14.5 W
- Number of DIN modules (1 DIN = 18 mm): 2
- Degree of protection: IP20
- Dimensions: 88x72x78.5 mm (HxWxD)
- Matching Accessories: Can be combined with NB1-63 and NB1-63H 2P up to 63A
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AS
- Differential current :
- 0.3A
- Degree of protection:
- IP20
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
