Lovato Monoblock-Potentiometer 10KOHM LPCPA010
LOV LPCPA010
8013975215296
Lovato Monoblock-Potentiometer, mit den folgenden Eigenschaften:
- IEC/EN Bemessungsisolationsspannung Ui: V 250 V AC
- Bemessungs-Stoßspannung Uimp: kV 4
- Maximale Leistung: 1W
- Widerstandswert : KΩ 10
- Material: Polyamid - Widerstandsmaterial: Cermet
- Schutzart IEC : IP66, IP67; IP96K auf der Vorderseite und IP20 auf der Rückseite
- Mechanischer Stellweg: °290
- Gewicht: 40 Gramm
- UL-Schutzgrad: 1, 2, 3R, 4, 4X, 12, 12K auf der Vorderseite
- Betriebstemperatur: min °C -25 - max °C +70
- Lagertemperatur: min °C -40 - max °C +85
- Widerstandstoleranz: % ±10%.
![](https://www.elettronew.com/47103-large_default/potentiometer-monoblock-lovato-10kohm-lpcpa010.jpg)

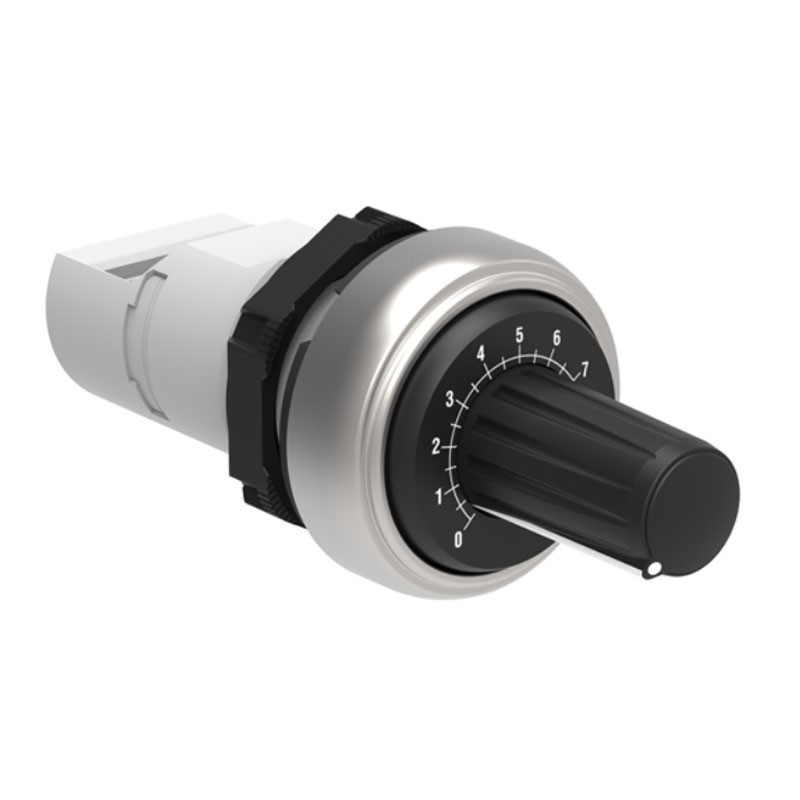

Lovato Monoblock-Potentiometer 10KOHM LPCPA010
36,91 €
Technische Daten
- Art:
- Potentiometer
- Schutzart:
- IP67
