Vortex Axial Centrifugal Aspirator 125 16151


Request info about this product

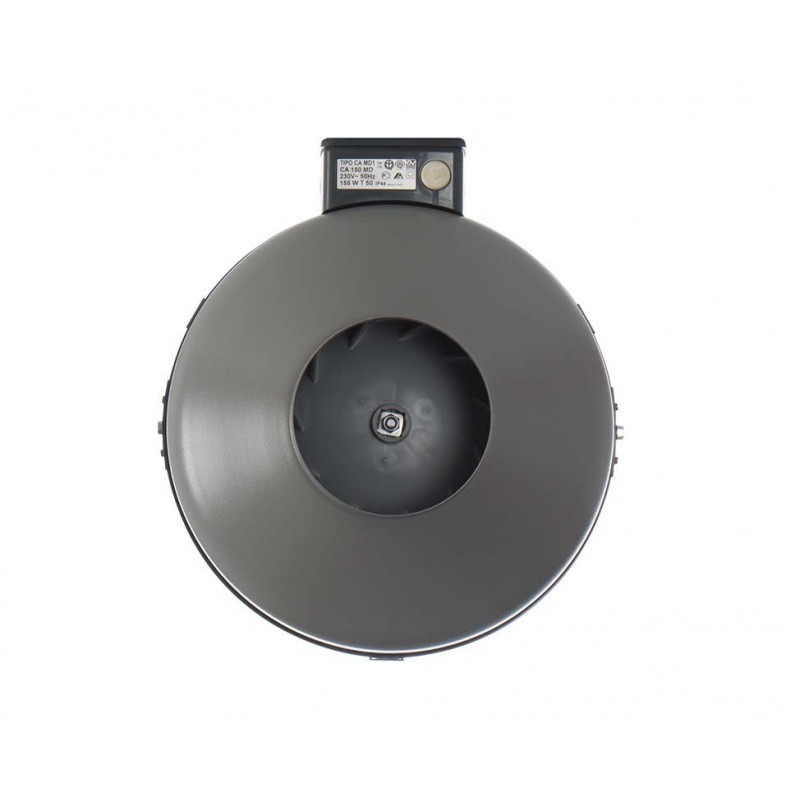

Vortex Axial Centrifugal Aspirator 125 16151

Brand: Vortice

Air and odor aspirator Vortex model CA 125 MD axial centrifugal steel duct, nominal diameter 125 mm.

VOR 0000016151

8010300161518

Available

9 Pieces in stock


152,28 € Tax included


Secure payment by credit card, Paypal or Boniface
Made Easy 14 Days

Features:

  • Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
  • Nominal diameter 125 mm
  • 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support, centrifugal impeller with inverted blades.
  • Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
  • Metal brackets for wall mounting in galvanized steel.

Technical specifications:

  • Max. current consumption at max. speed (A) 0.22
  • Max. current consumption at min. speed (A) 0.06
  • Nominal Conduit Diameter (mm) 125
  • Frequency (Hz) 50
  • IP 44 degree of protection
  • Insulation Class II
  • Weight (Kg) 3,00
  • Max. power consumption at max speed (W) 51
  • Max. power consumption at min. speed (W) 13
  • Max. ambient temp. continuous operation (°C) 50
  • Voltage (V) 220-240
  • Max. flow rate at max. speed (l/s) 100
  • Max. flow rate at max. speed (m³/h) 360
  • Max. flow rate at min. speed (l/s) 34,7
  • Max. flow rate at min. speed (m³/h) 125
  • Max pressure at max speed (mmH2O) 35.7
  • Max. pressure at max. speed (Pa) 350
  • Max. pressure at min. speed (mmH2O) 11.9
  • Max. pressure at min. speed (Pa) 119
  • Sound pressure Lp [dB (A)] 3m - max vel 45.9
  • RPM max 2300
  • RPM min 850

Diameter One hundred twenty five
Type Centrifugal
